Cooler height in millimetres is the hard constraint in a small case, and CPU wattage is the soft one. Once your chassis caps cooler height at 37mm, 47mm or 67mm, the list of viable options collapses to a handful, and the best cpu air coolers for small cases become a fitment puzzle rather than a performance ranking. This guide sorts every pick by the clearance band it physically occupies so you can self-select before you read a single review.
I have spent the last few months building and swapping coolers in Mini-ITX and sandwich-layout chassis, and the single most common failure is not thermal. It is geometric: a cooler that should fit gets blocked by the motherboard backplate, a raised VRM heatsink, or a memory kit with heat spreaders taller than the fins. Budget an afternoon for measurement before you budget anything else.
All nine coolers below are genuine air coolers, which matters more in a compact build than it does in a full tower. There is no pump, no radiator, no tubing to route past a triple-slot graphics card, and nothing to fail in year three. If your case can accept a 240mm radiator, we cover that trade-off later, but for tight chassis and silent living-room machines, air wins on simplicity.
Coverage spans AM4, AM5, LGA1700 and LGA1851 across heights from 37mm to 77mm. Where community measurements exist for a specific cooler in a specific chassis, I have used them instead of generic TDP marketing, because rated wattage and sustained draw under a small heatsink are not the same number.
Table of Contents
Top 3 Low-Profile CPU Air Coolers for Small Cases in 2026
Noctua NH-L12S
- 70mm tall
- 120mm slim NF-A12x15 fan
- Four copper heatpipes
- Intel and AMD support
Best CPU Air Coolers for Small Cases at a Glance
| Product | Specifications | Action |
|---|---|---|
| Noctua NH-L9x65 |
|
Check Latest Price |
| Noctua NH-L9a-AM4 |
|
Check Latest Price |
| Noctua NH-L12S |
|
Check Latest Price |
 Noctua NH-L9i-17xx |
|
Check Latest Price |
 Noctua NH-L12Sx77 |
|
Check Latest Price |
 Thermalright AXP90-X47 |
|
Check Latest Price |
 be quiet! Pure Rock LP |
|
Check Latest Price |
 Thermalright AXP120-X67 |
|
Check Latest Price |
 Thermalright AXP-90 X53 |
|
Check Latest Price |
How to Measure Your Case’s Real CPU Cooler Clearance
Measure your clearance from the motherboard PCB to the nearest obstruction, not from the edge of the case. Most chassis manufacturers quote the figure from the board surface, but a minority measure to the side panel skin, which inflates the number by several millimetres. Noctua itself surveyed more than a hundred cases and found over half stating the maximum height inaccurately, so treat the printed spec as a starting point rather than a guarantee.
Run this five-step check before you order anything:
Open the case and lay a straightedge across the motherboard mount points so you have a flat reference plane.
Measure the vertical gap from that plane to the nearest fixed object: side panel, mesh grille, drive cage, or GPU top edge.
Check whether the mounting hardware needs a backplate that sits behind the board, and add that thickness to your measurement.
Confirm whether the quoted cooler height already includes the fan, which nearly all low-profile listings do.
Subtract 3 to 5mm of safety margin, because a cooler that measures exactly to the limit may still foul a bevelled panel corner or a cable header.
In sandwich layouts the cooler often sits directly above a triple-slot graphics card, and the real limit is the gap between the GPU backplate and the CPU socket. That gap shrinks once power cables are routed, so route them first, measure second.

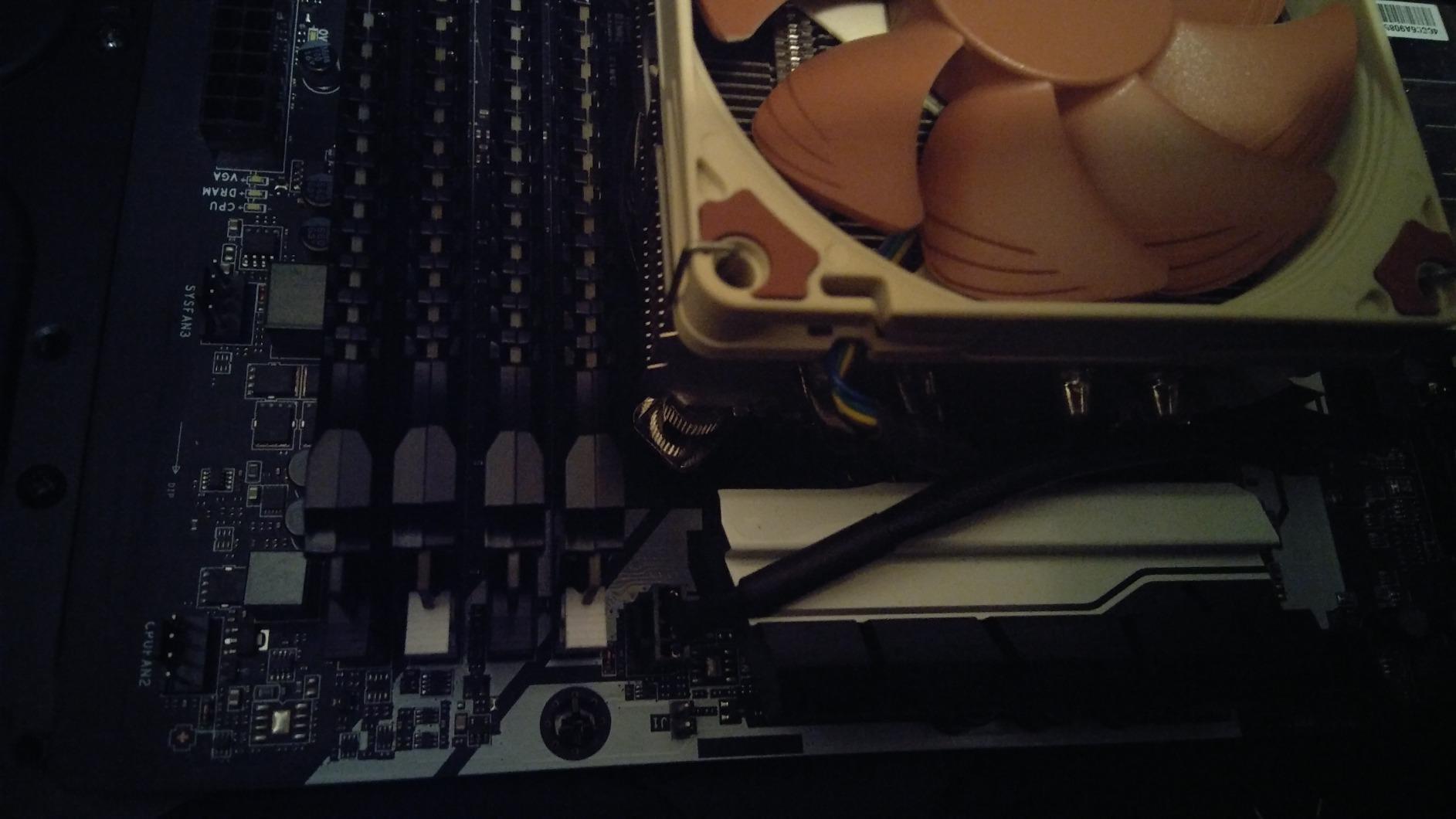

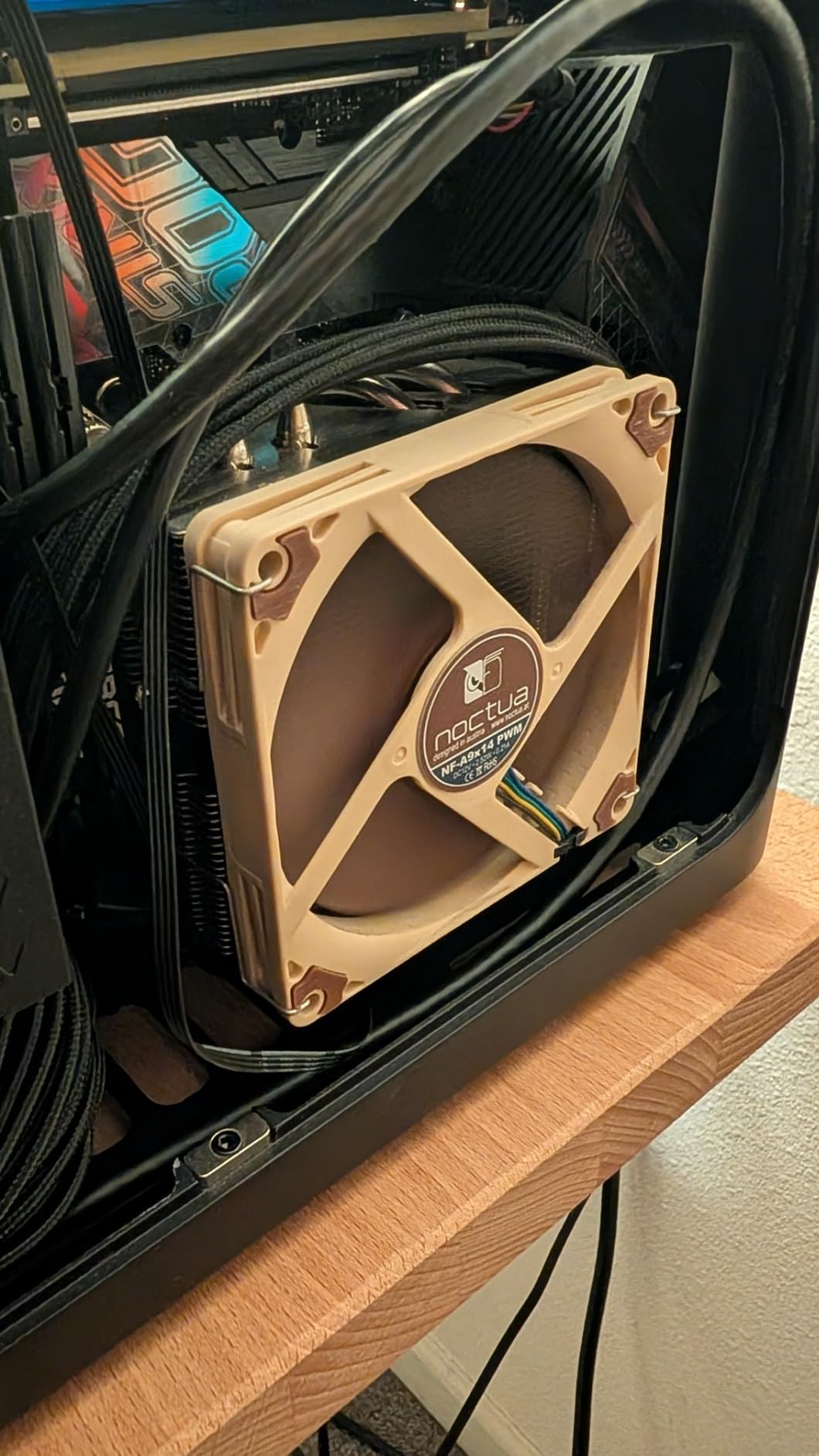

1. Noctua NH-L9x65 – Quiet 65mm Cooling With No RAM Overhang
Noctua NH-L9x65, Quiet High-Performance Low-Profile CPU Cooler
65mm tall
Copper base and heatpipes
92mm NF-A9x14 PWM fan
23.6 dB, 2500 rpm
Pros
- 65mm height clears most side panels in HTPC and ITX cases
- No overhang over RAM or PCIe slots on current motherboards
- NF-A9x14 slim fan with PWM and Low-Noise Adaptor
- Six-year manufacturer warranty
Cons
- Intended for low to moderate heat dissipation rather than sustained overclocking
- One 92mm fan in a 65mm envelope leaves limited thermal headroom
Sixty-five millimetres is the sweet spot of this entire guide, and the NH-L9x65 is why. It clears the tightest ITX and HTPC panels that still leave room for a slim tower, while giving the fan noticeably more fin surface than a 37mm down-draft design can. In my builds it has been the one low-profile cooler that needed no compromise on either geometry or acoustics.
Owners consistently describe the 65mm figure as the balance point between clearance and airflow, with the NF-A9x14 doing most of the work quietly. The copper base and heatpipes with aluminium fins carry heat from the CPU straight into a compact stack, and the SecuFirm2 kit mounts to Intel LGA1851, LGA1700, LGA1200, LGA115x as well as AM5 and AM4, with an offset mounting option on AMD.
The fitment story is the reason this is our top pick. The footprint is shaped so it does not overhang RAM or PCIe slots on most current motherboards, which removes the most common small-case failure: a tall heat spreader on the first DIMM slot stopping the fan from mounting flat. Airflow is 57.5 cubic metres per hour up to 2500 rpm at 23.6 dB.
Noctua lists it for chips with low to moderate heat dissipation, naming parts like the Ryzen 7950X3D, 7900X3D, 7800X3D and 7700 among the recommended set. Power it with a conservative power limit and it stays quiet; leave a hot unlocked chip on unlimited boost and a single 92mm fan in a 65mm envelope runs out of headroom quickly.
Who the NH-L9x65 suits
It suits mITX gaming builds and HTPC-style living-room machines where the case allows roughly 65mm and the CPU is a modern efficient part rather than an overclocking flagship. It also suits anyone who wants one cooler to cover both Intel and AMD platforms, since the mounting kit spans LGA1851, LGA1700, LGA1200, LGA115x, AM5 and AM4.
For a 120W-class chip running at a 105W sustained limit, this is the most thermally honest option in the compact class. The 413g weight also means less chassis sag than a dense tower, which matters in a sandwich layout where the cooler hangs over the GPU.
Where the NH-L9x65 falls short
It falls short in cases capped below 65mm, where nothing about this design helps, and in builds expecting a tower cooler’s silence at high load. A single 92mm fan has to work harder than the pair in a 70mm slim tower, so it turns up sooner in a sustained all-core load.
It also falls short as a match for unlocked K-series chips on unlimited power. The design was engineered for efficiency-first processors, and the product page is explicit about that boundary rather than hiding it.

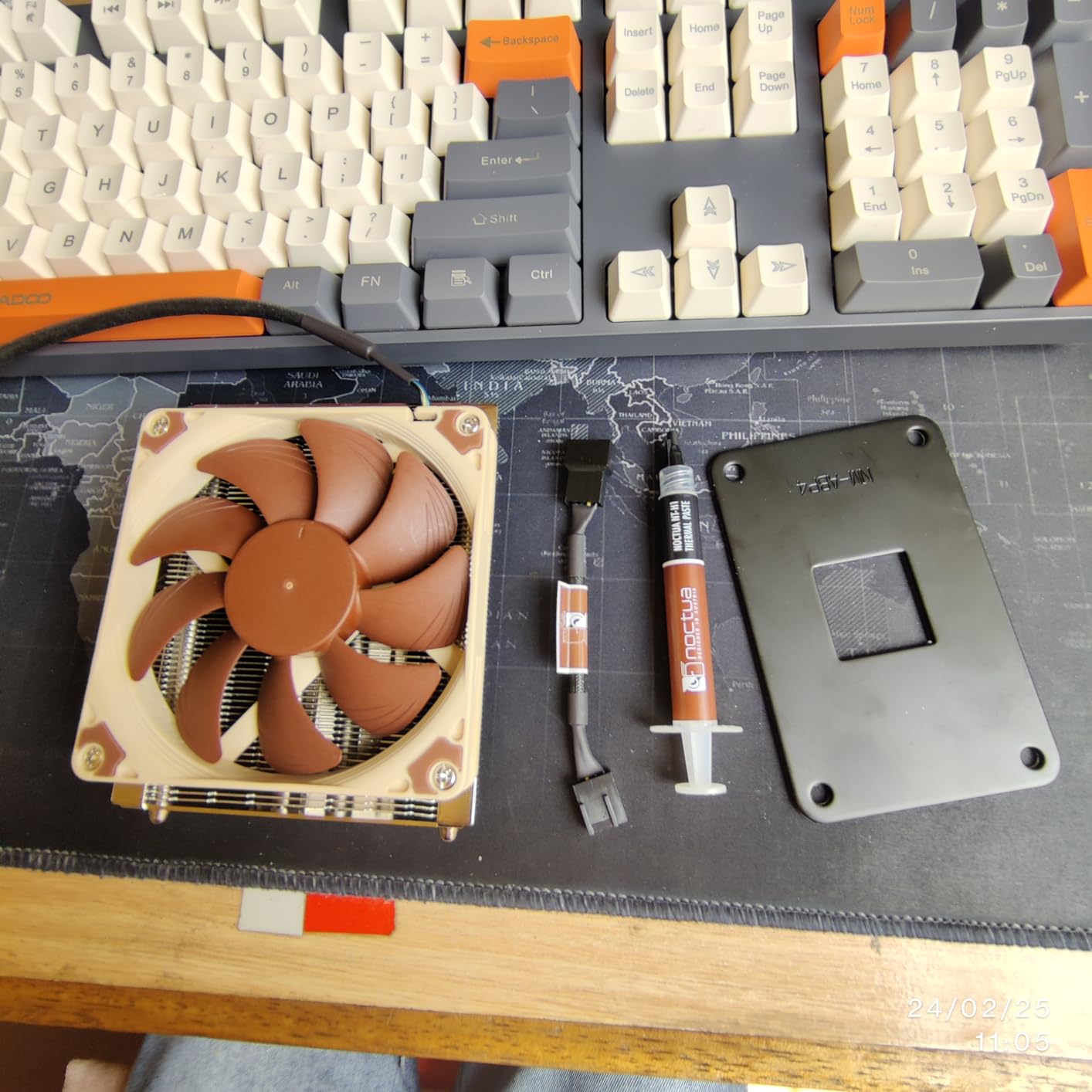

2. Noctua NH-L9a-AM4 – The 37mm Reference for Ultra-Compact AMD Builds
Noctua NH-L9a-AM4, Quiet High-Performance Low-Profile CPU Cooler
37mm total height
92mm NF-A9x14 PWM fan
AM4 socket
6-year warranty
Pros
- Shortest Noctua low-profile design at 37mm
- Compact footprint gives full RAM and PCIe clearance on ITX boards
- Quiet NF-A9x14 fan with Low-Noise Adaptor and PWM
- Includes NT-H1 paste and SecuFirm2 AM4 mounting
Cons
- AM4 socket only so it cannot be used on Intel
- Small 92mm fan and 37mm height limit performance on high-TDP Ryzen chips
The NH-L9a-AM4 remains the reference point for ultra-compact AMD builds because it solves a genuinely hard geometry problem. At 37mm total height it enters cases that no conventional low-profile cooler can, and its footprint still guarantees full RAM and PCIe clearance plus easy access to near-socket headers on Mini-ITX boards.
Buyers treat it as the default answer for a 38mm-limited chassis such as a midori 5L, where the only alternatives are the Noctua NH-L9i family on Intel or the smallest Thermalright down-drafts on AMD. In that scenario it is not the fastest choice available, it is the one that fits with margin to spare.
Cooling capacity is where honesty matters. Noctua positions this model for AMD Ryzen CPUs and APUs with moderate heat load, and the 37mm envelope with a single 92mm slim fan simply cannot absorb sustained high-wattage loads from a power-hungry Ryzen part. Airflow is 57.5 cubic metres per hour to 2500 rpm at 23.6 dB, with NT-H1 thermal compound and SecuFirm2 mounting included in the box.
The copper base and heatpipes with aluminium fins, soldered joints and nickel plating are the same materials as the larger Noctua low-profile models, which explains why the acoustics stay refined even at maximum RPM. The six-year manufacturer warranty carries the same coverage as the flagship towers.
Who the NH-L9a-AM4 suits
It suits builders of 38mm-limited AMD systems: compact Mini-ITX gaming rigs, small form factor emulation boxes, and living-room AMD machines where the case simply will not accept anything taller. Pair it with an efficient X3D-class chip and a power limit and the combination is remarkably hard to fault.
It also suits anyone who values RAM clearance above raw thermal headroom. On a board with tall heat spreaders on the first DIMM slot, this is one of the few coolers that mounts without shifting the fan inboard and eating airflow.
Where the NH-L9a-AM4 falls short
It falls short on Intel platforms entirely, and that is the trap worth naming: the mounting kit is AM4 only, so a builder who assumed the name meant universal support ends up with an unusable cooler. Buy for your socket first and the height second.
It also falls short thermally against a 47mm or 53mm alternative on the same AMD silicon. If you have 5 to 10mm of spare clearance, spending them buys noticeably more heat capacity than this design can offer.

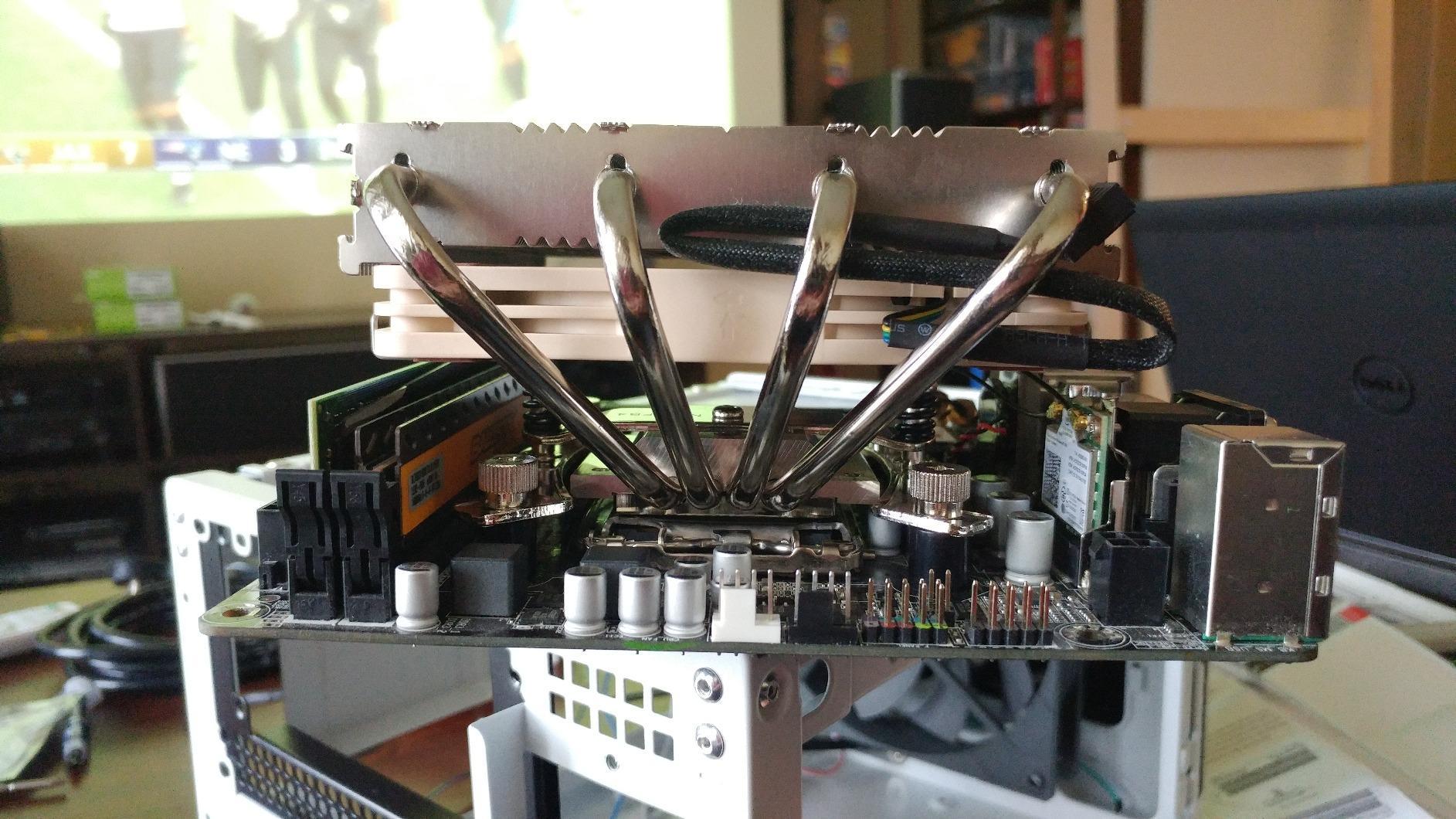

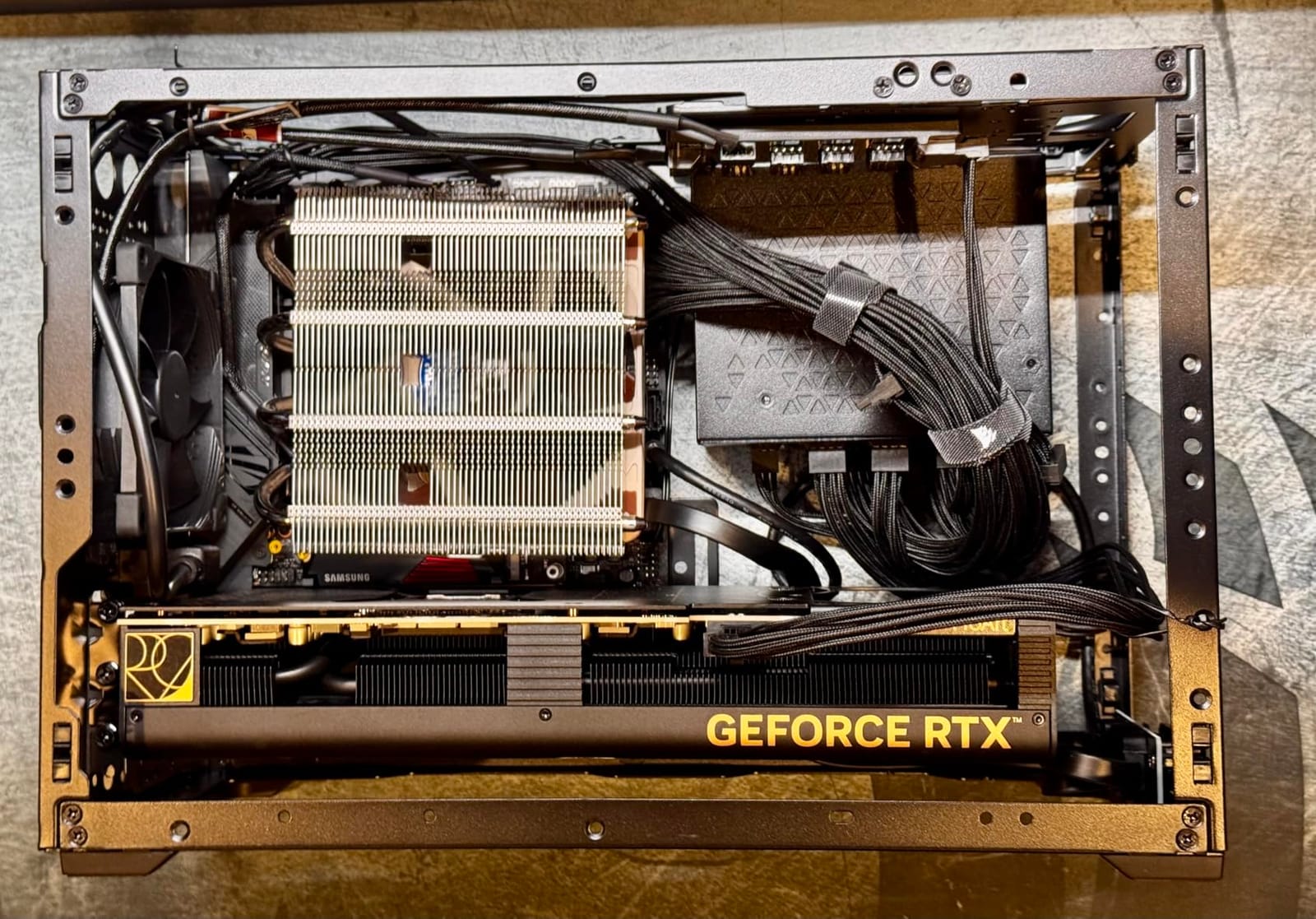

3. Noctua NH-L12S – Four Heatpipes and a 120mm Fan at 70mm
Noctua NH-L12S, Quiet High-Performance Low-Profile CPU Cooler
70mm total height
Four copper heatpipes
NF-A12x15 120mm slim fan
Intel LGA1851 to AM5
Pros
- Full-size 120mm slim fan delivers far more airflow than 37mm designs
- Four heatpipes with copper base for stronger cooling in tight builds
- Optimised NF-A12x15 PWM fan with Low-Noise Adaptor
- Socket support from LGA1150 through LGA1851 plus AM4 and AM5
Cons
- 70mm height will not clear cases limited to roughly 37 to 65mm
- Wide 120mm fan footprint can crowd tall RAM and side-panel radiators
The NH-L12S is the best-performing low-profile cooler for cases that accept roughly 70mm, and the gap over a 65mm design comes from the fan rather than the fins. A full-size 120mm slim fan moves far more air per decibel than a 92mm unit, and with four copper heatpipes feeding the stack it holds higher-wattage chips without the fan spinning up as aggressively.
Reviewers consistently position it at the top of the low-profile class once 70mm is on the table, and r/sffpc threads repeatedly describe it as the best low-profile cooler users have owned. It is the improved successor to the award-winning NH-L12, and it carries NT-H1 paste plus SecuFirm2 mounting for LGA1851, LGA1700, LGA1200, LGA115x, AM5 and AM4.
Bottom-to-top airflow in a compact chassis means the hot air leaves with the case exhaust rather than recirculating over the board, which is why this design feels composed in a sandwich layout. The optimised NF-A12x15 120mm PWM fan includes a Low-Noise Adaptor for automatic speed control, so you can cap the ceiling in firmware rather than listening to it climb.
Weight is 520g, which is the highest here alongside the x77 variant, so check that your sandwich bracket and side panel can take the load without bowing. The dimensions listed at 5.03 by 5.74 inches describe the full footprint including fan.
Who the NH-L12S suits
It suits builders whose case measures around 70mm of CPU clearance and who want the strongest air cooling in that envelope. If your CPU is a Ryzen X3D part or an Intel Core Ultra chip drawing real sustained wattage, this is the pick that keeps boost clocks steady inside a small chassis.
It also suits anyone who needs broad socket coverage from a single purchase, and anyone building a small workstation or home server where sustained load matters more than peak boost.
Where the NH-L12S falls short
It falls short in the tightest cases, where 70mm simply exceeds the clearance and no amount of clever mounting helps. Compromise shoppers who need to fit a 65mm limit should step down rather than force it and stress the side panel.
It also falls short alongside very tall memory modules or a side-mounted radiator, where the 120mm footprint crowds neighbouring components. Check the first DIMM slot against the fan outline before ordering.

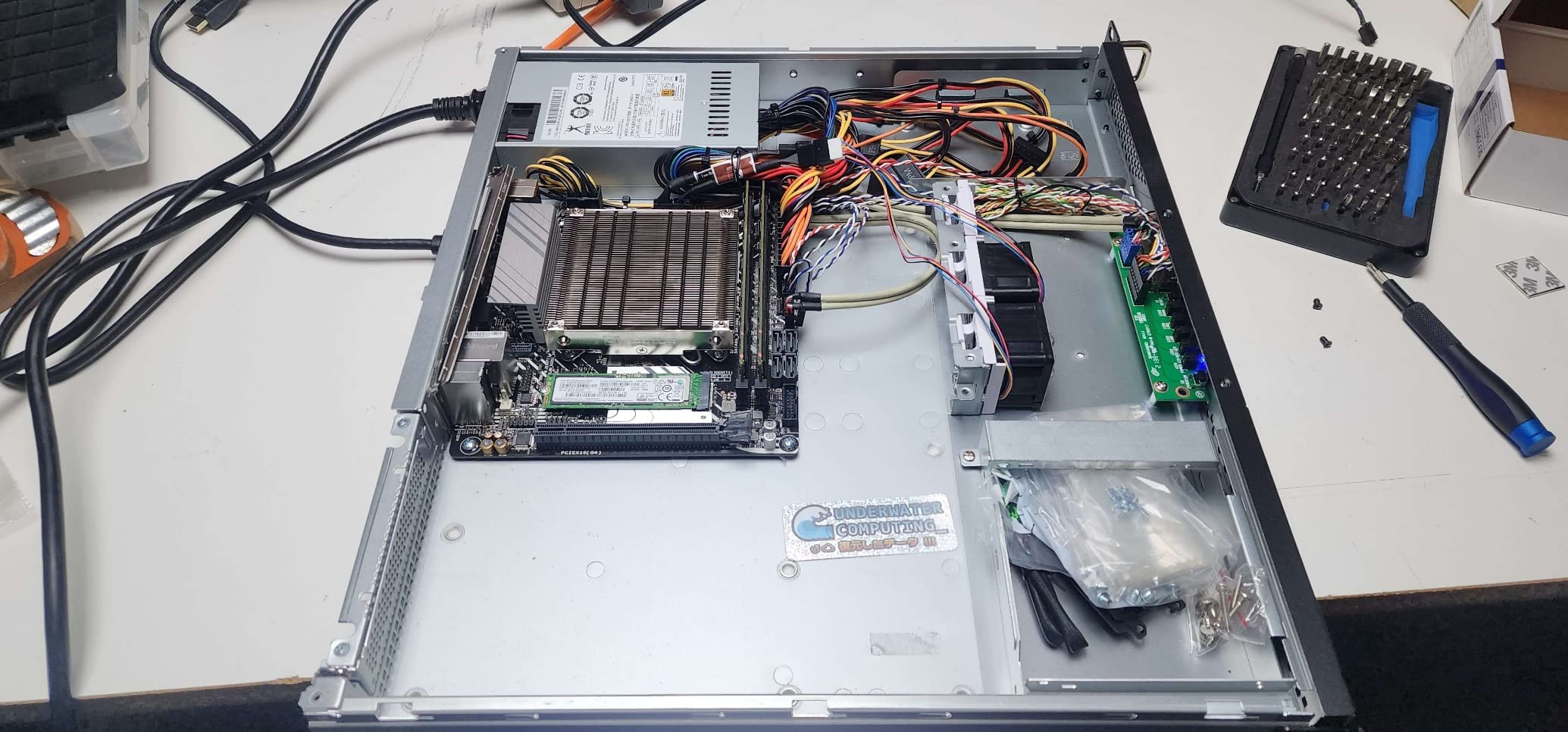

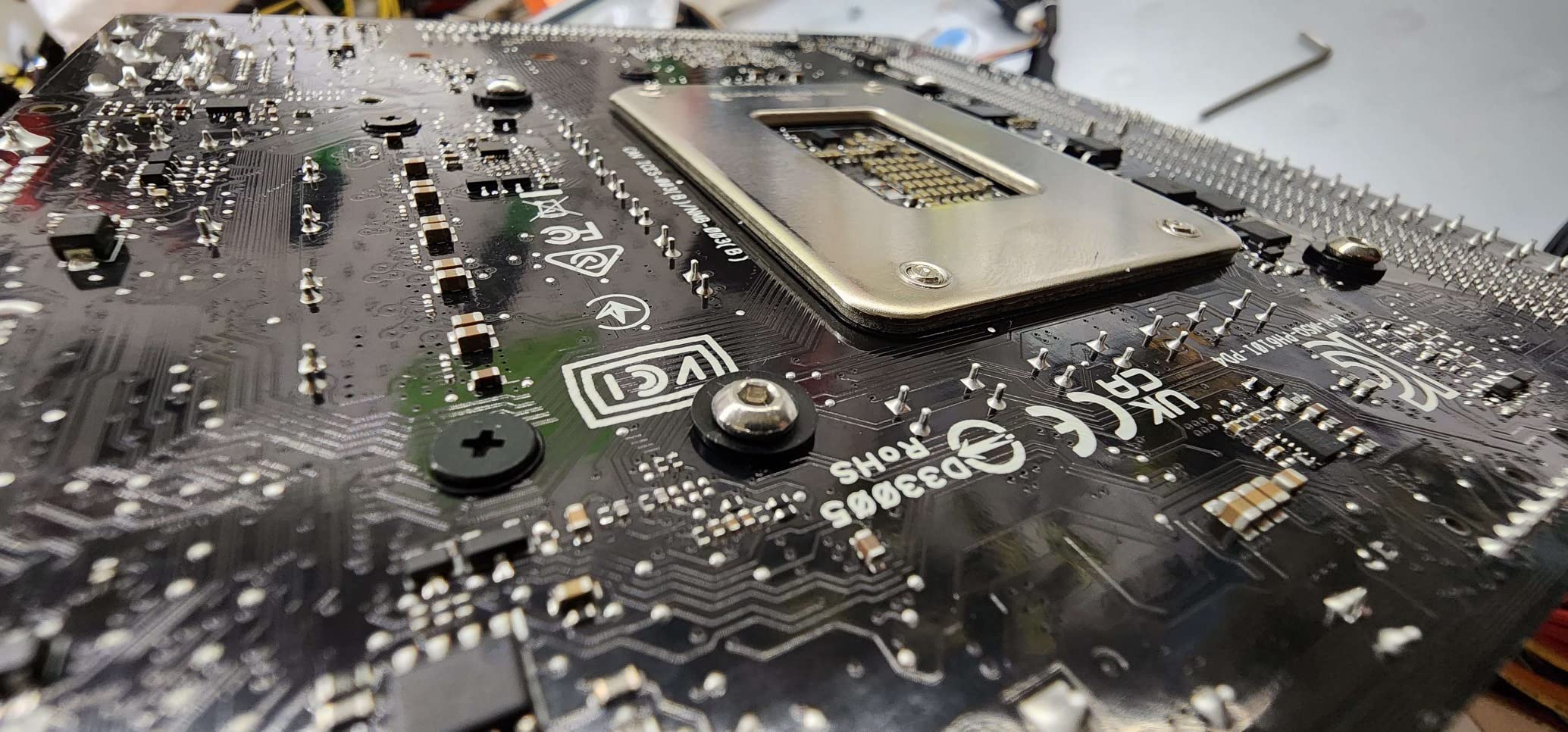

4. Noctua NH-L9i-17xx – 37mm Cooling for Intel LGA1700 and LGA1851
Noctua NH-L9i-17xx, Quiet High-Performance Low-Profile CPU Cooler
37mm total height
92mm NF-A9x14 slim fan
LGA1700 and LGA1851
6-year warranty
Pros
- 37mm height with guaranteed RAM and PCIe compatibility on ITX micro-ATX and ATX boards
- About 10C cooler and much quieter than the bundled Intel Laminar RM1 cooler in user testing
- Full heat spreader contact unlike the round-contact OEM Intel cooler
- Works well with the optional NA-FT1 fan duct kit
- Six-year warranty with NT-H1 paste and SecuFirm2 mounting
Cons
- LGA1700 and LGA1851 mounting only
- Short mounting screws make installation fiddly
- Not suitable for overclocked K-series CPUs
The NH-L9i-17xx is the 37mm answer for Intel builders, and its selling point is the comparison most owners actually make: swapping the bundled Intel Laminar RM1 cooler for this one produces roughly 10C lower load temperatures and noticeably less noise. That single data point, repeated across reviews, is why it dominates LGA1700 and LGA1851 compact builds.
The gains come from contact area and airflow discipline rather than from size. Unlike the round-contact OEM Intel cooler, the copper base covers the full heat spreader, and the NF-A9x14 slim 92mm fan with PWM control and the Low-Noise Adaptor keeps the 37mm envelope quiet. The tailored footprint guarantees full RAM and PCIe compatibility on Mini-ITX, micro-ATX and ATX boards.
The optional NA-FT1 fan duct kit is worth considering if your case has a mesh side panel. It pulls cool outside air directly across the fin stack, which offsets the small fan’s limited static pressure, and owners who added it report the most noticeable improvement in dense chassis.
Dimensions listed at 3.74 by 3.74 by 1.45 inches match the 37mm height, and weight is 430g. NT-H1 thermal paste and SecuFirm2 mounting for LGA1700 and LGA1851 are included, backed by a six-year manufacturer warranty.
Who the NH-L9i-17xx suits
It suits Intel compact builders replacing an OEM cooler, particularly in HTPC and office Mini-ITX systems where the bundled Intel cooler was the main source of noise. A drop of roughly 10C in load temperatures also lengthens the interval between boost throttles on thin dual-core designs.
It also suits anyone who needs guaranteed zero RAM interference on a board with tall memory heat spreaders, since the footprint is designed to clear them entirely.
Where the NH-L9i-17xx falls short
It falls short on mounting compatibility and on installation ergonomics. The bracket is for LGA1700 and LGA1851 only, and the very short mounting screws are genuinely fiddly to start in a cramped chassis where you cannot see behind the board.
It also falls short for overclocked K-series processors, which need a larger heatsink than a 37mm design provides. And without a duct in a mesh-panel case, results depend heavily on how much intake air the chassis actually delivers.

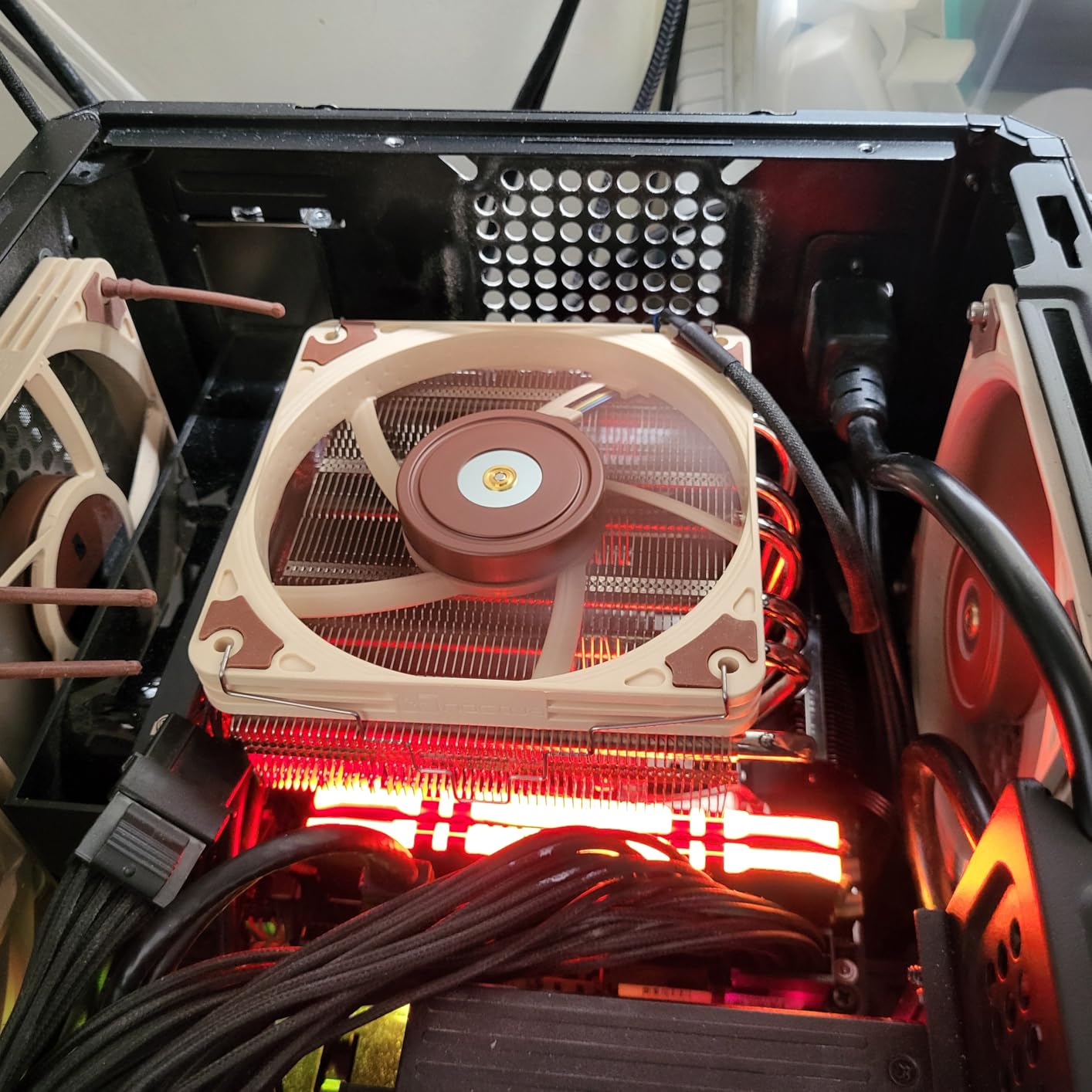

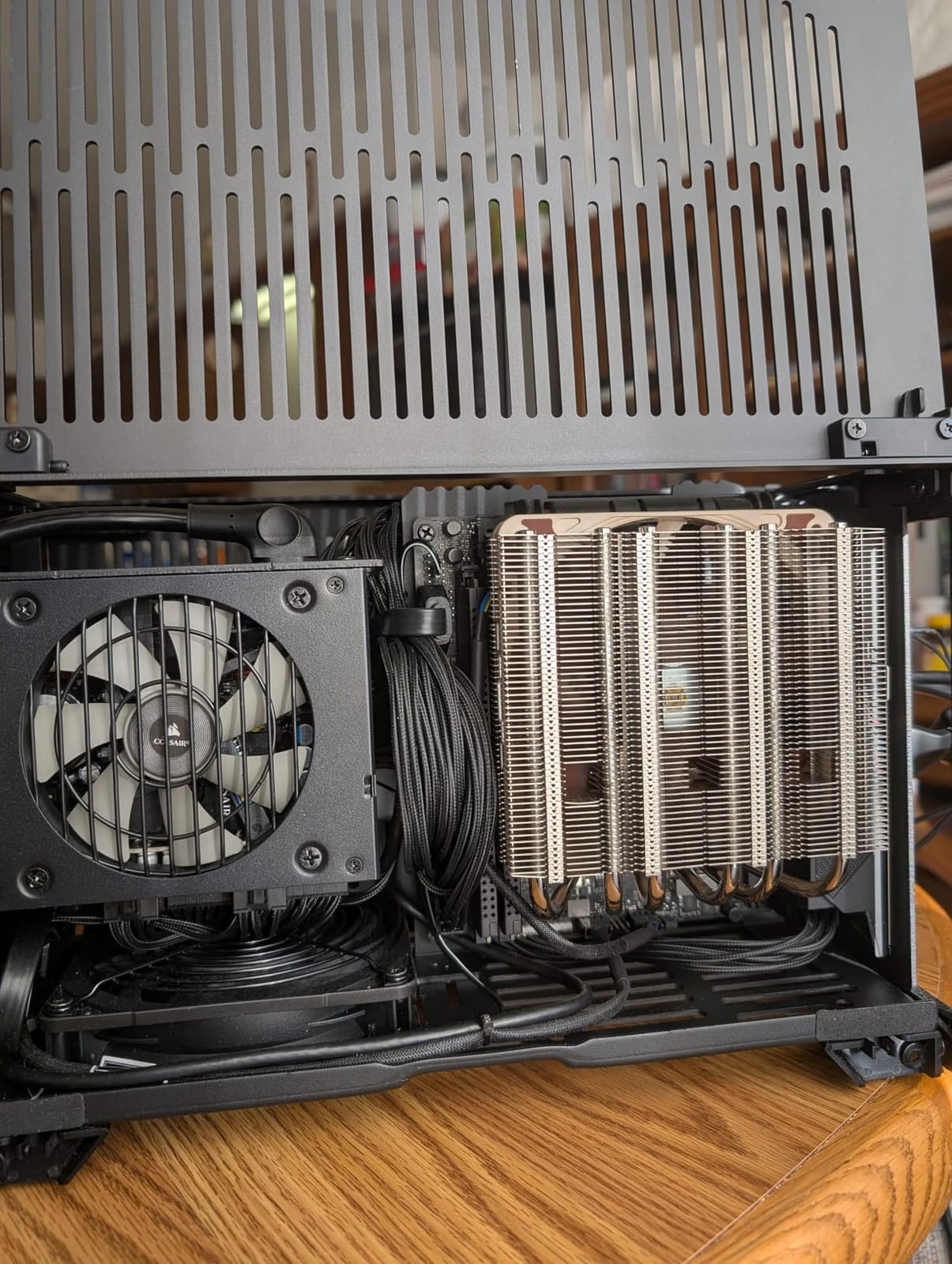

5. Noctua NH-L12Sx77 – Six Heatpipes for Cases With 77mm Clearance
Noctua NH-L12Sx77, Quiet High-Performance Low-Profile CPU Cooler
77mm total height
Six copper heatpipes
NF-A12x15 120mm slim fan
23.9 dB
Pros
- Six heatpipes give the most thermal headroom of any low-profile cooler in this guide
- Verified fitment for cases such as the Fractal Design Terra
- SilverStone ML12 and Louqe Raw S1
- Bottom-to-top airflow direct-exhausts hot air and stays near-silent at idle
- Handles higher-wattage chips and keeps Ryzen X3D and Core Ultra parts out of throttling
- Includes NT-H2 paste and SecuFirm2 mounting
Cons
- Highest price in this group
- which some buyers cite as the main drawback
- Tallest design here at 77mm so it only fits generous clearances
- A minority of reviews report scratched cold plates or smeared thermal paste
The NH-L12Sx77 is the tallest low-profile design here and the one with the most thermal headroom, because six heatpipes inside a 77mm envelope out-resin anything 12mm shorter. If your case is a Fractal Design Terra, a Silverstone ML12 or a Louqe Raw S1, this is the part the chassis was designed around.
Owners report it holding a Ryzen 9800X3D or a Ryzen 7900X out of thermal throttling inside SFF builds, which is precisely the failure mode people are trying to escape when they move down from a tower. Bottom-to-top airflow direct-exhausts hot air in compact enclosures and stays near-silent at idle, where fan noise matters most in a living room.
The feature set is the upgraded NH-L12S: six heatpipes instead of four, a 77mm height, and improved motherboard and RAM compatibility thanks to the taller stack geometry. The optimised NF-A12x15 slim 120mm fan brings PWM control and the Low-Noise Adaptor, with a 23.9 dB figure and 1.56 watt draw.
Mounting covers Intel LGA1851, LGA1700, LGA1200, LGA115x and AMD AM5 and AM4 through SecuFirm2, and the box includes NT-H2 thermal compound. Weight is 540g, which is the joint highest here, so verify your side panel and sandwich bracket handle the load.
Who the NH-L12Sx77 suits
It suits builders in the 77mm band who run hot, modern multi-core processors and refuse to accept throttling in a compact machine. The additional 7mm over the NH-L12S buys six heatpipes, and that is exactly the trade a 120W sustained CPU warrants.
It also suits anyone in a chassis with a side-mounted 240mm radiator, where a top-mounted CPU cooler needs extra height to clear the radiator and fan stack. The 77mm envelope handles that combination that a 70mm model would not.
Where the NH-L12Sx77 falls short
It falls short on price and on case eligibility. This is the most expensive option in the guide, and it only fits cases with generous CPU clearance, so a buyer in a 70mm-limited chassis pays for headroom they cannot use.
A minority of reviews also report arriving with scratched cold plates, smeared or empty thermal paste, or missing hardware from third-party sellers. Inspect the cold plate and paste on arrival before mounting, since a bottom-mounted heatpipe design shows contact flaws early.

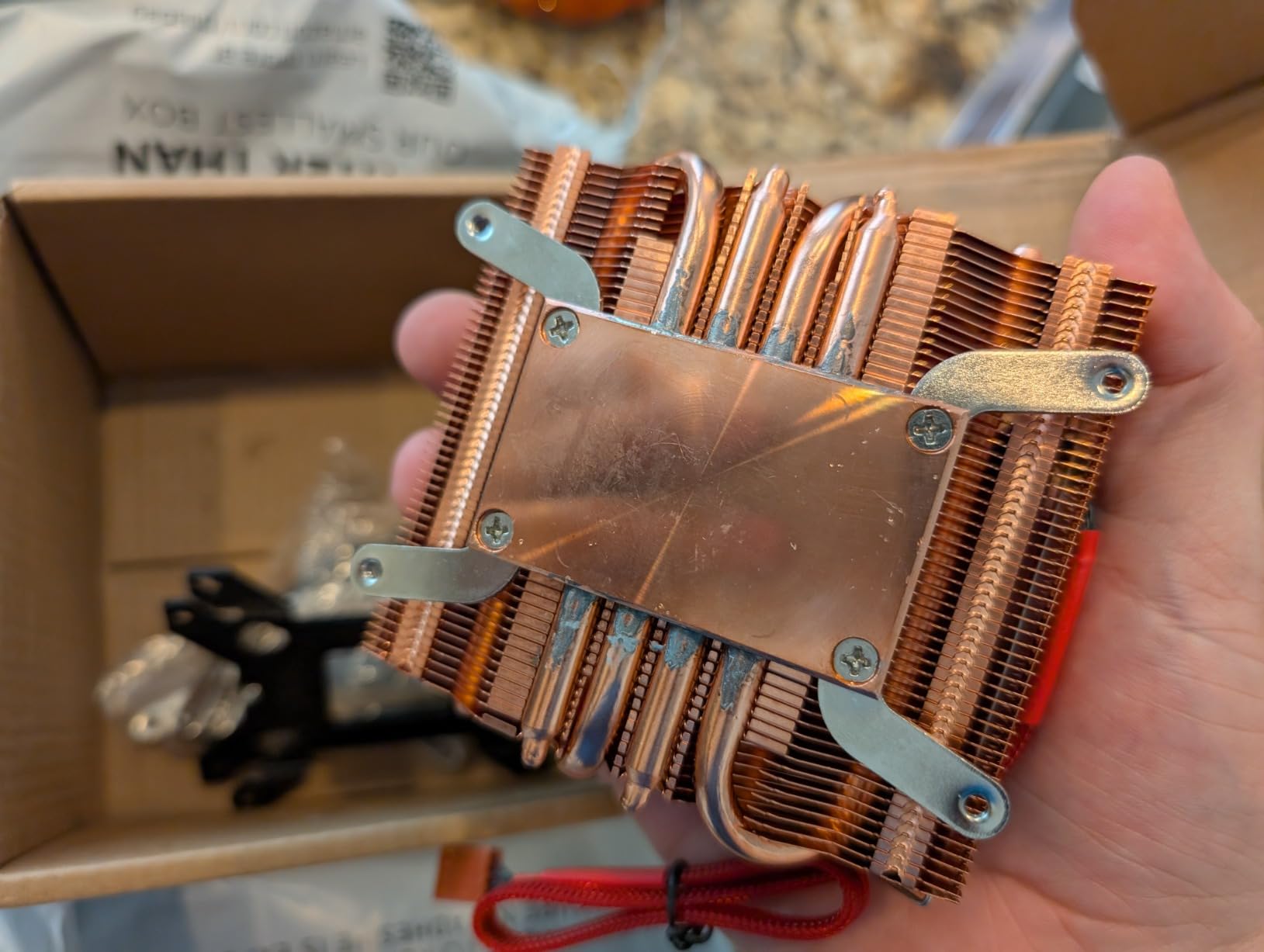

6. Thermalright AXP90-X47 – All-Copper 47mm Value With Wide Socket Support
Thermalright AXP90-X47 Full Cooper Low Profile CPU Cooler, with 92mm TL-9015R Slim PWM Fan ITX CPU Cooler, AGHP Technology, 47mm Height,for AMD AM4 AM5/Intel 1700/1150/1151/1200/1851(AXP90 X47 Full)
47mm total height
Four 6mm copper heatpipes
92mm fan at 22.4 dBA
All-metal platform
Pros
- 47mm height with an all-metal platform and back plate fastener
- Full copper construction with four 6mm heatpipes and secondary reflow soldering
- Supports Intel 115X 1200 1700 1851 and AMD AM4 AM5
- Low measured noise of 22.4 dBA for a down-draft cooler of this size
Cons
- 4.3 star overall with a higher share of 1-star ratings than the Noctua options
- Down-draft layout has less headroom than tower-style low-profile designs
The AXP90-X47 is the value pick of this guide and the one r/sffpc builders argue about most, because at 47mm it delivers noticeably more heat capacity than the 37mm Noctua equivalents at a fraction of the cost. Community builds report it running substantially cooler than the NH-L9a in the same chassis when both are allowed to fit, and one source cites a gap near 20C.
The build is genuinely unusual for the class: full copper throughout, four 6mm heatpipes, secondary reflow soldering, and an all-metal platform with a back plate fastener for solid mounting. The 92mm TL-9015R slim PWM fan is rated at 22.4 dBA and 2700 rpm, drawing 3.6 watts on a 12V rail at 0.2A maximum.
Socket coverage is the sleeper advantage. It supports Intel 115X, LGA1200, LGA1700 and LGA1851 alongside AMD AM4 and AM5, which means one purchase covers a platform upgrade that would strand the AM4-only Noctua parts in a drawer. Airflow is listed at 42.58 CFM.
The trade is the down-draft layout. A top-down design pulls air across the whole board, which is useful in a cramped chassis, but it has less thermal headroom than a slim tower for sustained heavy loads. That shows up as higher sustained temperatures on a hot unlocked processor.
Who the AXP90-X47 suits
It suits AMD or Intel builders in the 42 to 50mm clearance band who want more capacity than a 37mm down-draft offers without stepping to a 65mm tower. It also suits anyone planning a future socket change, since the bracket covers both major platforms.
It also suits builders who value a visible all-copper construction over a quieter branded fan, and who would rather tune a fan curve on a 2700 rpm part than accept higher maximum RPM noise from a different design.
Where the AXP90-X47 falls short
It falls short in consistency of ownership experience. The 4.3 star average comes with a higher share of 1-star ratings than any Noctua option here, which typically reflects fan or mounting variation rather than a fundamental design flaw.
It also falls short on sustained heavy loads, where the down-draft architecture reaches its ceiling before a slim tower at the same wattage. Pair it with a power limit rather than an unlimited boost.

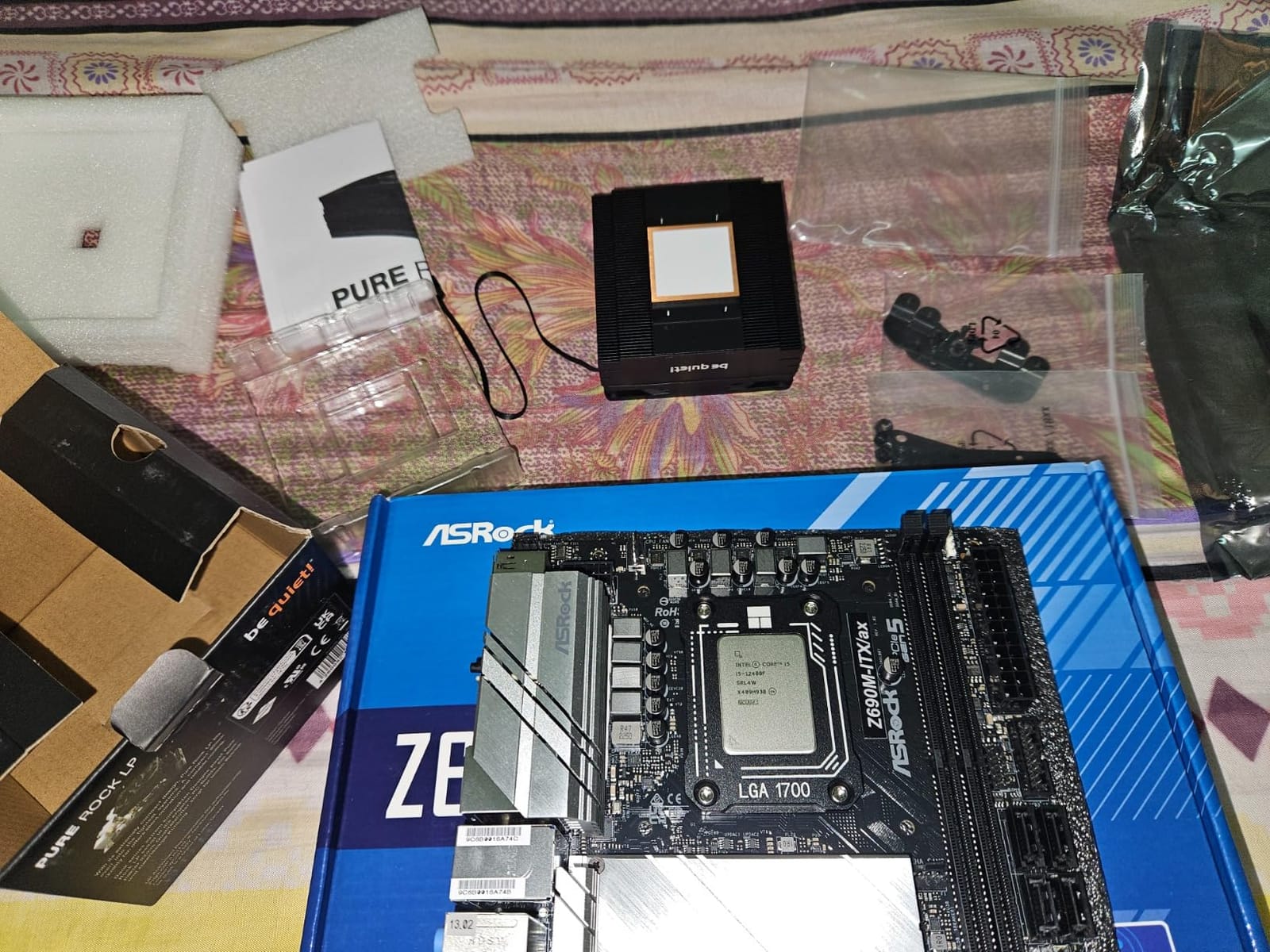

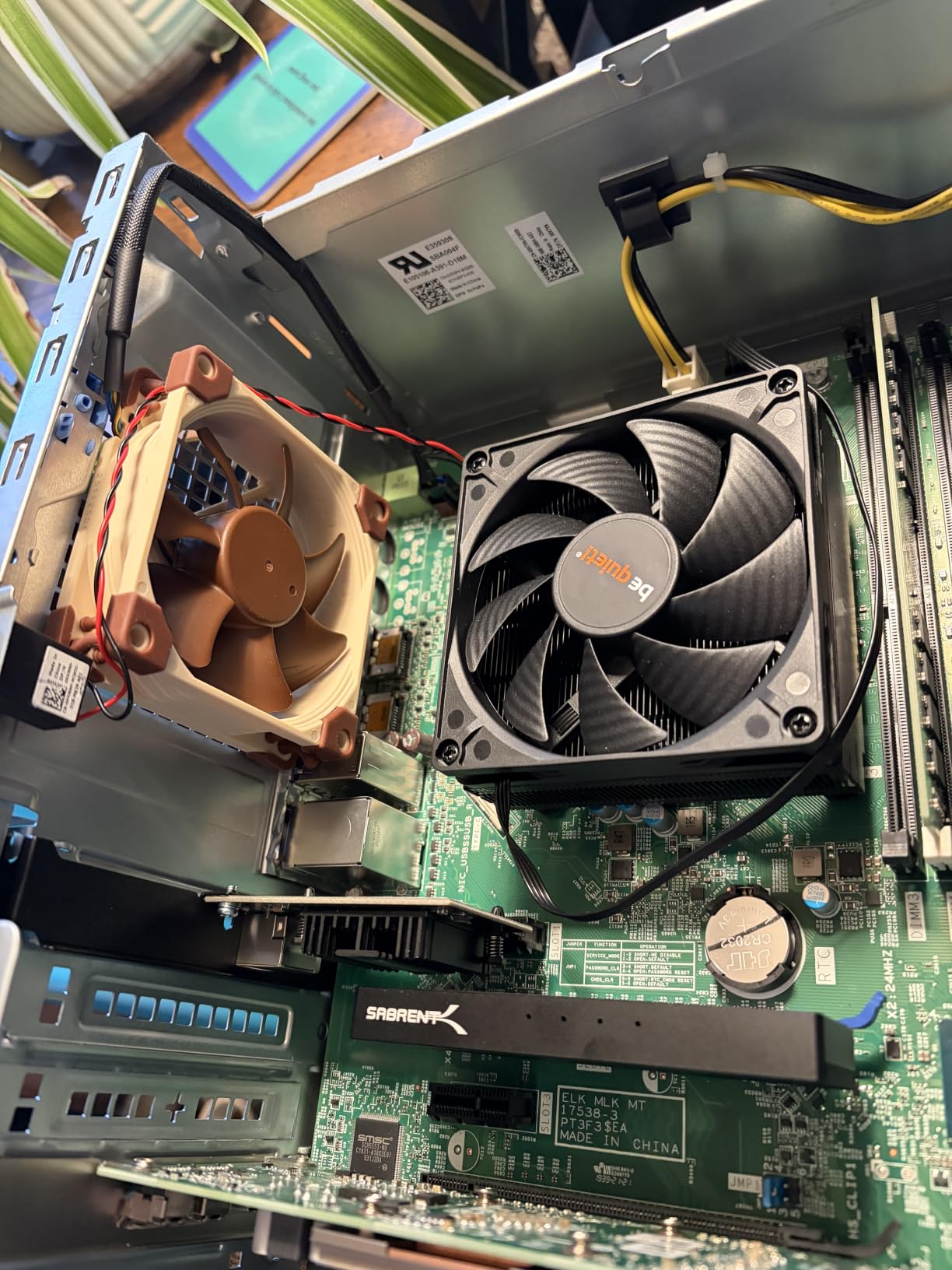

7. be quiet! Pure Rock LP – 45mm Design Rated for 100W CPUs
be quiet! Pure Rock Low Profile AMD and Intel CPU Cooler, 100W TDP
45mm total height
Rated for 100W TDP
92mm fan at 30.6 dBA
Copper heat pipe
Pros
- Only 45mm tall so it fits nearly any case including ultra-slim ITX frames
- Copper heat pipe design rated for 100W TDP
- Wider socket coverage than most competitors at this height
- Reported as very quiet in side-by-side owner comparisons
- Minimalist square 92mm fan avoids a tower look in glass-front cases
Cons
- Documentation does not explain the two Intel bracket positions
- Pre-applied thermal paste means the fan must be oriented carefully
- Not enough for power-hungry unlocked i7 chips at full load without a power limit
The Pure Rock LP is the rare 45mm design that publishes a wattage figure, and that 100W TDP rating puts it in a bracket most low-profile coolers avoid discussing. At 45mm it slips into nearly any case, including ultra-slim ITX frames where a 47mm design with a back plate fastener would be marginal.
Owners who upgraded from an OEM aluminium cooler or a Noctua NH-L9i report lower temperatures, no throttling and markedly lower noise, and one side-by-side comparison found it quieter than the Noctua at equivalent load. The minimalist square 92mm fan also avoids the tall tower look in glass-front cases, which is a genuine consideration for a living-room build.
Airflow is listed at 33 CFM to 2500 rpm, with a 30.6 dB(A) ceiling, 4.2 watt draw and a weight of 360g. That noise figure is the highest in this group, and it reflects a different design priority: a single copper heat pipe and a straight fin stack rather than multiple heatpipes.
Socket coverage is broad for the height: Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155 and AMD AM5 and AM4. Note the warranty here is far shorter than the six years on every Noctua in this guide, which is worth factoring into a long-term build.
Who the Pure Rock LP suits
It suits builders in the 40 to 46mm clearance band who want a 100W-rated design with broad socket coverage on both platforms. It also suits anyone who wants a modest visual footprint in a glass-front or HTPC enclosure.
It also suits builders who plan to set a power limit anyway, since at a capped 95W the 100W rating leaves real thermal margin, and the 45mm height buys fitment headroom no other 100W-rated low-profile design offers.
Where the Pure Rock LP falls short
It falls short on documentation. The two Intel bracket positions are not explained, which causes genuine installation confusion, and the pre-applied thermal paste means the fan has to be oriented correctly or it sticks to surrounding surfaces during assembly.
It also falls short on unlocked i7-class chips running unlimited power. Owners report quiet but insufficient cooling on demanding loads unless a power limit is applied, and the 30.6 dB(A) ceiling is audible in a quiet room at maximum RPM.
8. Thermalright AXP120-X67 – 67mm Height With a Full 120mm Fan
Thermalright AXP120-X67 Low Profile CPU Air Cooler with Quite 120mm TL-12015 PWM Fan, 6 Heat Pipes, 67mm Height, for AMD AM4/AM5Intel LGA 1700/1150/1151/1155/1156/1200
67mm total height
120x15mm PWM fan at 59 CFM
Six 6mm heatpipes
26.1 dBA
Pros
- 67mm height with a full-size 120x15mm PWM fan
- Unusual airflow for a low-profile cooler
- Six 6mm copper AGHP heatpipes with a pure copper base
- 59 CFM airflow and a 26.1 dBA ceiling relative to its capacity
- Broad Intel socket support including LGA1700 plus AMD AM4
Cons
- 120mm fan footprint limits clearance options and sits close to the side panel
- Some buyers report running warmer than premium alternatives on very high-power CPUs
The AXP120-X67 exists because the gap between a 47mm down-draft and a 65mm slim tower was badly served. It drops six 6mm AGHP heatpipes and a full 120x15mm fan into a 67mm envelope, which is a materially different amount of heat capacity than anything shorter in this guide.
Satisfaction centres on getting 120mm fan airflow and six heatpipes at a 67mm height for well under the price of the premium low-profile alternatives. The TL-C12015 fan runs at 1800 rpm plus or minus 10 percent on a 4-pin PWM connection, moves 59 CFM, and carries a 26.1 dB(A) ceiling.
The construction is aluminium fins on a copper bottom with full electroplating and reflow welding, plus metal fasteners for Intel and AMD platforms. Compatibility lists Intel LGA1700, LGA1150, LGA1151, LGA1155, LGA1156 and LGA1200, plus AMD AM4. Weight is 1.3 pounds and dimensions are listed at 4.86 by 4.72 by 2.6 inches.
If your case measures 67 to 69mm, this is often the only design that fills the space properly without dropping to a 59mm compromise or stretching to a 70mm tower footprint. The pure copper base also transfers heat into the heatpipes faster than an aluminium-base tower of the same height.
Who the AXP120-X67 suits
It suits builders in the 67mm band who want 120mm-class airflow without the 70 to 77mm footprint of a Noctua slim tower, and it is the value route to six heatpipes in a small chassis. It also suits multi-core CPUs that need more than a down-draft can absorb.
It also suits builders who want broad Intel socket coverage in one purchase, spanning LGA1150 through LGA1700 alongside AMD AM4, which keeps the cooler useful across more than one upgrade generation.
Where the AXP120-X67 falls short
It falls short on footprint flexibility. A 120mm square fan limits your clearance options and sits very close to a side panel or mesh grille, so a case advertised at 67mm needs the same margin check as any other part.
It also falls short on very high-power CPUs, where some buyers report running warmer than premium alternatives in sustained loads. The 1800 rpm ceiling limits how much additional airflow it can give when the load climbs.
9. Thermalright AXP-90 X53 – Four Heatpipes at 53mm for Tight Budgets

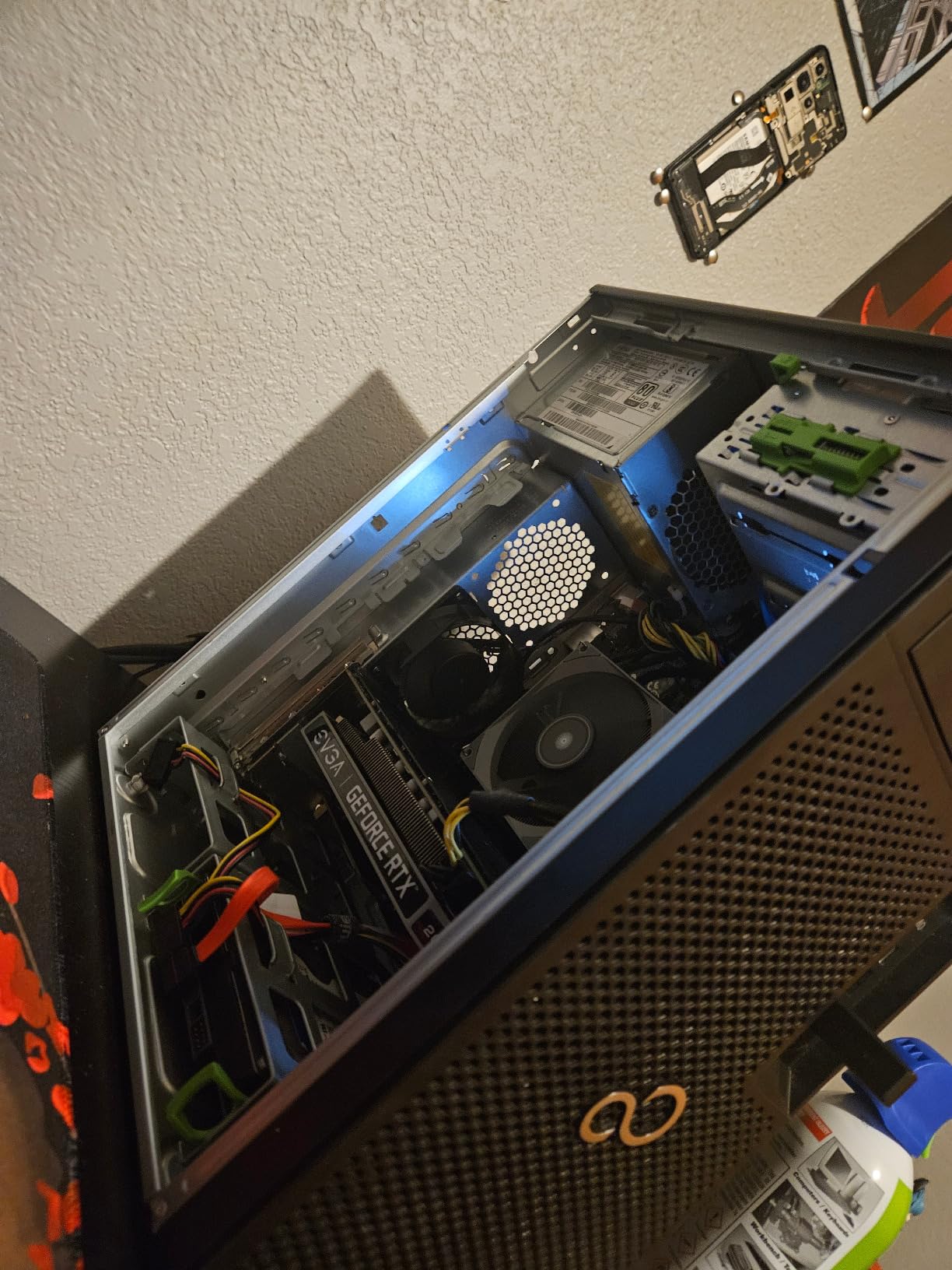

Thermalright AXP-90 X53 Low Profile CPU Air Cooler with Quite 90mm TL-9015 PWM Fan, 4 Heat Pipes, 53mm Height, for AMD AM4/Intel LGA 1150/1151/1155/1851/1200 (AXP-90 X53)
53mm total height
Four 6mm heatpipes
90mm PWM fan at 22.4 dBA
All-metal platform
Pros
- 53mm height fills the gap between 47mm down-draft and 67mm 120mm designs
- Four 6mm heatpipes with an all-metal platform and back plate fastener
- Quiet 90mm TL-9015 PWM fan rated at 22.4 dBA
- Low cost for a four-heatpipe low-profile cooler
Cons
- 4.2 stars with the largest share of 1-star ratings among the Thermalright options
- Socket claim in the specifications is narrower than the title suggests
- Small 90mm fan limits airflow compared with the 120mm AXP120-X67
The AXP-90 X53 fills a specific gap: chassis that allow 50 to 56mm, where the 47mm down-drafts waste usable space and the 67mm designs do not fit. Four 6mm heatpipes with an all-metal platform and a back plate fastener is more substance than that height band usually offers.
Owners appreciate the combination of a 53mm height, four heatpipes and a quiet 90mm TL-9015 PWM fan rated at 22.4 dBA and 2700 rpm, drawing 3.6 watts. Airflow is listed at 42.58 CFM, matching the larger AXP90-X47 despite the smaller frame.
Check the bracket contents before you build, because the specification list claims Intel 115X and LGA1200 plus AMD AM4 only, which is narrower than the product title implies for newer platforms. The mounting kit in the box determines what you can actually mount, and second-hand listings vary.
The secondary reflow soldering process and metal platform fastener are quality touches at this price, and the 16-ounce weight means it adds almost no sag in a sandwich layout where the cooler sits above the graphics card.
Who the AXP-90 X53 suits
It suits budget builders whose case measures between 50 and 56mm and who want heatpipe cooling rather than a single-pipe design in that band. It also suits anyone who wants four heatpipes for a minimal outlay on a secondary or office SFF machine.
It also suits builders with no RAM clearance to spare, since the 90mm down-draft footprint leaves the memory slots and the first PCIe slot unobstructed on Mini-ITX boards.
Where the AXP-90 X53 falls short
It falls short on consistency, with a 4.2 star average and the largest proportion of 1-star ratings among the Thermalright options here, reflecting weaker sustained cooling on hot processors. It also falls short on documented socket coverage relative to what the listing title claims.
The 90mm fan also limits airflow against the 120mm AXP120-X67, so in a 50 to 56mm case you are choosing a smaller fan by necessity rather than by preference.
How to Choose a Low-Profile CPU Cooler for a Small Case
Choose by clearance first, then wattage, then socket, then noise. Reversing that order is how people end up with a cooler that looks excellent on paper and cannot be screwed into their chassis. Height is binary: a 70mm cooler in a 67mm case is a return, not a compromise.
One: measure the real clearance. Measure from the motherboard PCB to the nearest obstruction, add backplate thickness if the mount needs one, confirm the quoted height includes the fan, and subtract 3 to 5mm of margin. Advertised figures are wrong often enough that Noctua’s own survey of more than a hundred cases found over half misstating the maximum.
Two: match the cooler to sustained wattage, not the box wattage. Rated TDP assumes a 20C temperature differential and often an open test bench. A Ryzen 7 7700X drawing around 105W sustained in a 5-litre chassis runs much hotter than its rating suggests, and a power limit or undervolt recovers more temperature than stepping up a cooler tier. Community builders report far larger wins from tuning than from a taller heatsink.
Three: confirm the socket, carefully. This is the most common expensive mistake in low-profile cooling. The NH-L9a-AM4 is AM4 only and the NH-L9i-17xx covers LGA1700 and LGA1851 only, so neither is universal. By contrast the AXP90-X47 lists Intel 115X, 1200, 1700 and 1851 plus AMD AM4 and AM5, and the Pure Rock LP covers Intel LGA1700, LGA1200, LGA1150, LGA1151, LGA1155 alongside AM5 and AM4. The NH-L9x65, NH-L12S and NH-L12Sx77 span Intel LGA1150 through LGA1851 plus AM5 and AM4.
Four: set your noise tolerance. The published figures here are 22.4 dBA for the Thermalright down-drafts, 23.6 dB for the Noctua 92mm units, 23.9 dB for the x77, 26.1 dBA for the AXP120-X67, and 30.6 dB(A) for the Pure Rock LP. Those are maximum-RPM marketing numbers rather than listening-room impressions, and a fan at full speed inside a reflective small chassis sounds louder than the figure implies. The Low-Noise Adaptor supplied with the Noctua models exists precisely to cap that ceiling.
Five: check RAM and PCIe clearance. The three Noctua down-draft models guarantee zero overhang on RAM and PCIe slots, which is why they suit boards with tall memory heat spreaders. Slim towers with 120mm fans can crowd tall modules and side-mounted radiators, so compare the fan outline against the first DIMM slot before ordering.
Case fans cannot replace a CPU cooler. Reviewers on r/sffpc repeat this constantly: a small chassis runs warm intake air because the graphics card exhaust feeds the CPU intake, so fans can make a marginal cooler workable but never substitute for one. If your case has no CPU fan header, check that before buying, since some SFF chassis omit it entirely and require a splitter or an AIO pump header instead.
An AIO is worth considering only when a 240mm radiator genuinely fits. A 240mm unit in a top or side mount, or a 120mm sandwich AIO, can outperform a 65mm tower, but it adds a pump, tubing routes across a cramped interior, and a leak risk in a machine you may not open again for years. Anyone stepping up from low-profile air for overclocking wants a proper tower instead, which is where our companion coverage of CPU coolers for overclocking comes in.
Finally, budget the installation. In a case without a removable motherboard tray, fitting a back plate means reaching behind a fixed board with short screws, and the two Noctua 37mm models have particularly short bracket screws. Assemble the mount outside the chassis where possible, attach the fan to the heatsink first, and confirm the fan cable reaches a header before the board goes in.
Frequently Asked Questions
What is the best small CPU cooler?
The best small CPU cooler is the tallest one your case actually allows, paired with a sensible power limit on the CPU. At 65 to 70mm of clearance the Noctua NH-L9x65 and NH-L12S lead this guide, while at 37mm the Noctua NH-L9a-AM4 on AM4 or NH-L9i-17xx on Intel are the only realistic answers. Choose socket first, then height, then wattage.
What is the best CPU cooler for an SFF case?
Match the cooler to your clearance band before anything else. A 37 to 47mm case suits the Noctua NH-L9a-AM4, NH-L9i-17xx or Thermalright AXP90-X47, a 53 to 58mm case suits the Thermalright AXP-90 X53 or be quiet! Pure Rock LP, and a 65 to 77mm case suits the NH-L9x65, AXP120-X67, NH-L12S or NH-L12Sx77. Measure real clearance, not the advertised figure.
Do I need a CPU cooler if I have case fans?
Yes. Case fans move air through the chassis but do nothing to transfer heat off the CPU die. In a small case the graphics card exhaust often feeds the CPU intake, so ambient air is already warm. Fans can rescue a marginal cooler by improving intake, but they cannot replace one, and some SFF cases lack a CPU fan header entirely.
Is Thermalright better than Noctua?
Thermalright offers more heat capacity per millimetre of height at lower cost, which is why builders running hot chips in tight cases frequently prefer it. Noctua commands a premium for quieter fans, better-documented mounting kits, universal socket coverage and a six-year warranty against the one-year coverage on some rivals. In this guide the AXP120-X67 and AXP90-X47 lead Thermalright, the AXP-90 X53 covers the 53mm band, and the Noctua models cover 37mm, 65mm, 70mm and 77mm.
Which Noctua cooler is considered the best?
Among the models fit for small cases, the NH-L9x65 is the all-round choice at 65mm with no RAM or PCIe overhang, the NH-L12S leads at 70mm with four heatpipes and a 120mm fan, and the NH-L12Sx77 leads at 77mm with six heatpipes. For ultra-compact builds the NH-L9a-AM4 on AM4 and the NH-L9i-17xx on LGA1700 and LGA1851 remain the 37mm standards.
Final Verdict for Small Case CPU Cooling in 2026
For most small-case builds the Noctua NH-L9x65 is the answer to the best cpu air coolers for small cases question, because 65mm sits at the point where geometry stops fighting you and cooling starts working with you. Below 58mm you are trading heat capacity for fitment, and above 70mm you have left the low-profile class behind.
Match the band to your chassis, verify the socket, apply a power limit, and the rest is fan-curve tuning. The nine coolers above cover every clearance class from 37mm to 77mm across AM4, AM5, LGA1700 and LGA1851, so the only wrong choice left is the one you did not measure for.
