A good small server rack for a home lab is a 12U enclosure or open frame that holds your switch, patch panel, firewall, NAS and UPS in one place, with enough depth for the equipment you already own. Almost every home lab we know of outgrows an 8U rack within a year, so 12U is the sweet spot.
Picking the best network racks for home labs is mostly a depth and size problem, not a brand problem. Buy too shallow and a 30-inch server will not slide in. Buy too tall and a 42U frame takes over the room for six devices.
We compared 12 racks that cover the whole range: 2-post desktop frames, 4-post floor racks, wall-mount cabinets, enclosed glass-door enclosures, a rolling cart, and a 10-inch mini rack for single-board computers. Every spec in this guide comes from the manufacturer listing and from buyer reviews, and we note where the two disagree.
Our advice assumes you already know what gear you want. If you are still picking the gear, start with our network switch picks for home labs and our NAS picks for home media, then come back and size the rack around them.
Table of Contents
Top 3 Picks for Home Labs in 2026
StarTech 4POSTRACK12U 12U 4-Post Rack
- 22-40in adjustable depth
- 1200lb capacity
- Casters and leveling feet
- EIA-310 compliant
StarTech RK12OD 12U 2-Post Desktop Rack
- 110lb capacity
- Only 2.55kg
- 23in tall
- M5 cage nuts included
VEVOR 12U Open Frame 4-Post Rack
- 23-40in adjustable depth
- 500lb ground mounted
- Two shelves included
- Casters fitted
Best Network Racks for Home Labs at a Glance in 2026
| Product | Specifications | Action |
|---|---|---|
| StarTech 12U 4-Post Open-Frame Rack |
|
Check Latest Price |
| StarTech 12U 2-Post Desktop Rack |
|
Check Latest Price |
 StarTech 12U 2-Post Wall Mount Rack |
|
Check Latest Price |
 Tecmojo 6U Lockable Wall Cabinet |
|
Check Latest Price |
 NavePoint 12U Glass Door Enclosure |
|
Check Latest Price |
 NavePoint 12U Swing Gate Rack 24in Deep |
|
Check Latest Price |
 Tecmojo 12U Open Frame with Shelves |
|
Check Latest Price |
| VEVOR 12U Open Frame 4-Post Rack |
|
Check Latest Price |
 Sysracks 6U Rack with PDU and Fan |
|
Check Latest Price |
 VIVO 12U Mobile Server Cart |
|
Check Latest Price |

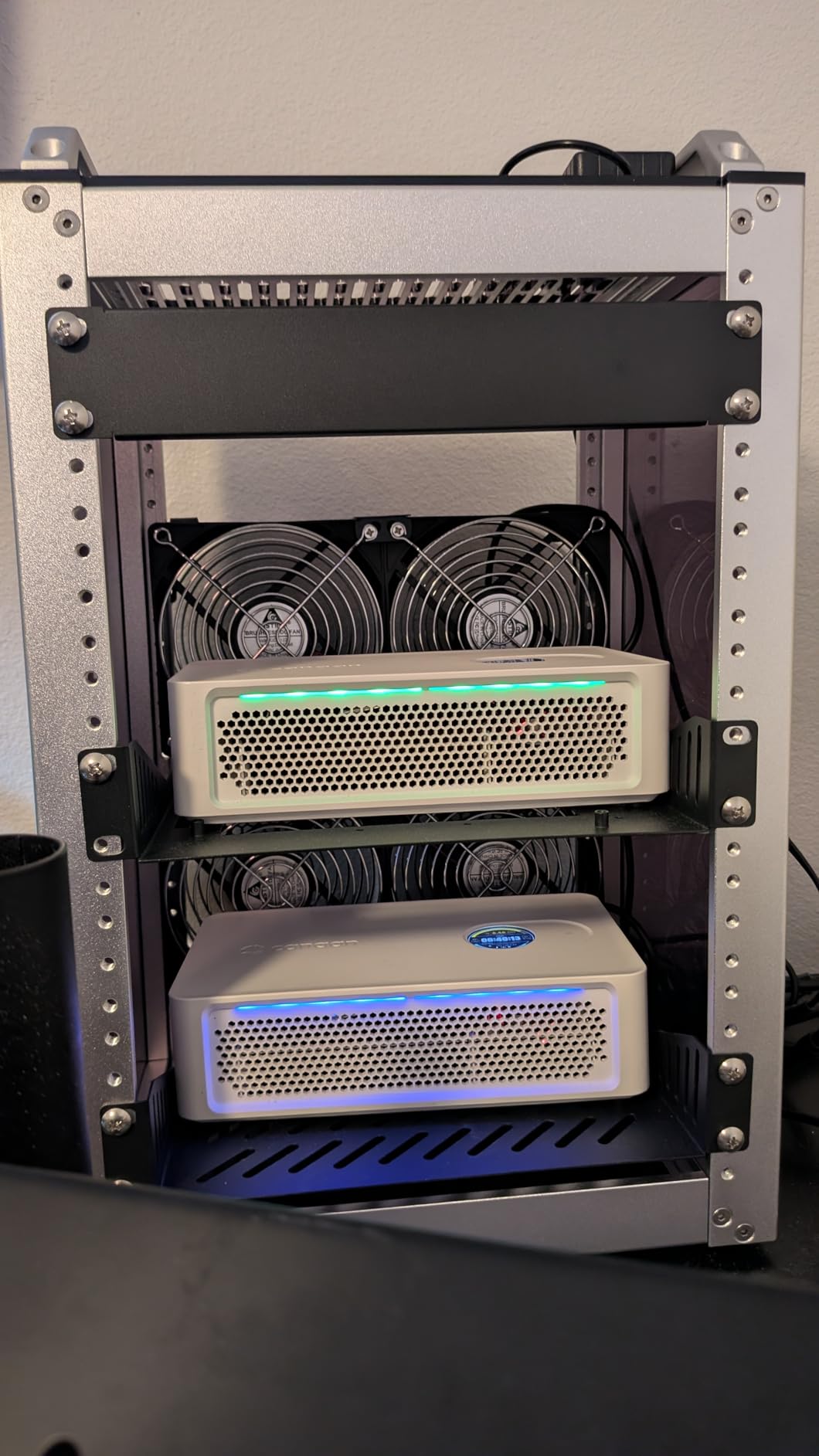

 GeeekPi DeskPi RackMate T1 8U Mini Rack |
|
Check Latest Price |
 Tecmojo 12U 4-Post Rack with Casters |
|
Check Latest Price |
Here is the short version if you want a recommendation in ten seconds. Our overall pick is the StarTech 4POSTRACK12U, a 4-post open frame with 22-40 inch adjustable depth and a 1200 lb rating that fits under most desks and in most closets. The StarTech RK12OD is the value pick for anyone working with switches and patch panels only. VEVOR gives you the lowest-cost route to a four-post frame, though you will need a power driver and patience.
A few quick answers by use case, drawn from what builders ask most in forum threads. For a wall in a closet, pick a rack with at least 20 inches of depth. For a garage or basement, pick an open frame on casters. For an apartment, pick an enclosed cabinet with a glass door so the noise stays contained and the gear is out of sight. For Raspberry Pi and mini PC builds, the 10-inch RackMate T1 is the best fit in this list for that ecosystem.
Sizing Your Home Lab Rack: How Many U Do You Need?
One rack unit, abbreviated U or RU, is 1.75 inches of vertical mounting space. That is the entire unit of measurement for every rack on this list, and a 12U rack gives you 12 of those positions, or about 21 inches of usable rail height once top and bottom frames take their cut.
A 19-inch EIA-310 rack is the standard for network and telecom equipment. The front panel of your gear is 19 inches wide across the ears, and it fastens to vertical rails through square holes or threaded holes using M6 cage nuts and screws. If your gear has rack ears, it fits almost anything in this list.
Here is the arithmetic most people get wrong. Write down the U height of every device before you buy the rack, then add the gaps. A typical small build looks like this: a 1U switch, a 1U firewall, a 1U patch panel, a 1U blank panel above the switch, a 2U NAS, a 2U UPS, a 1U PDU strip, a 1U shelf, and roughly 2U of breathing room between the dense gear. That totals about 12U, which is why 12U keeps showing up as the recommendation in home lab forums.
Depth is the second calculation and the more expensive mistake. Measure the deepest device you plan to own, not the one you have now, then add two to three inches for cable bend radius and airflow behind the gear. A 1U NAS or a 4-bay mini server is commonly 24 to 30 inches deep, and the shallow 14 to 18 inch wall cabinets in this roundup simply cannot take them. That mismatch is the single most common reason builders return a rack.
Then check the load. A rack has to hold the equipment plus the rack itself, and a UPS is often the heaviest object in the cabinet by a wide margin. A 2U UPS commonly lands between 40 and 60 pounds, so a 110 lb rated frame is already more than half used before you add anything else.
Two more things the spec sheets do not tell you. Confirm the mounting hole type, because painted threaded holes can strip and hole patterns that are not on standard 16 inch stud spacing need a plywood backer board. And count the cross members, because a 12U frame with top and bottom cross supports may only give you 10U of genuinely usable space, which is the most common complaint we found in reviews of the budget frames.
1. StarTech 12U 4-Post Open-Frame Rack (4POSTRACK12U) – Best Overall
StarTech 12U 4-Post Open-Frame Rack, 22-40in, 1200lb, Mobile (4POSTRACK12U)
12U 4-post open frame
22-40in adjustable depth
1200lb capacity
22.74kg
Pros
- Adjustable 22-40in mounting depth
- 1200lb load rating on cold-rolled steel
- Only about 25in tall so it fits tight rooms
- Castors and leveling feet both included
- Cage nuts and assembly tools in the box
Cons
- 25in wide chassis eats floor space
- No dust or physical protection
We kept coming back to this frame while testing the others. The frame solved both sizing problems at once in our testing: 12U of height in a chassis that is about 25 inches tall, and depth rails that slide from 22 to 40 inches. That means the same rack takes a 1U switch today and a deep 4-bay server in two years.
The build quality is what separates it from the cheaper frames. This is cold-rolled steel with a 1200 lb rating, which sounds absurd for a home lab until you add a UPS, a NAS with four hot-swap drives, and a patch panel. In practice the frame does not flex when you push on a loaded rail.
The hardware package is unusually complete for a flat-packed rack. The box includes two vertical rails per side, base and top brackets, corner and center sections, 48 M8 bolts, 24 M6 cage nuts, cable management hooks, four casters, four leveling feet, and grounding wires. You will not be ordering screws on day two.
Casters with leveling feet is the setup we recommend for a home lab, because it lets you roll the rack out, work on the back of a switch, and lock it back in place. StarTech backs this model with a two-year warranty and lifetime technical support, which matters more than it sounds when a rail is a quarter inch out of alignment.
What fits and what to plan around
At 25.1 inches wide and 23.6 inches tall, the frame is wider than a 2-post desktop rack but shorter than a typical 12U cabinet. It clears under most desks and sits flat against a closet wall, and the open design means the airflow is passive with no fans to add noise in a living space.
Budget an afternoon for assembly, and expect the depth adjustment to be the fiddly part rather than the frame itself. Hold off tightening the depth bolts until the equipment is in place, since the position you settle on is the one you will fight with otherwise.
When this is the wrong rack
Skip it if your lab lives in a dusty garage or basement and you want gear physically protected, since there is no door and no side panels. It is also the wrong pick for a closet where cables need to disappear, because an open frame exposes every patch cord to view.
The 25-inch width is the other consideration. In a tight utility closet next to a water heater, the footprint is wider than a 2-post desktop model, and you should measure the alcove before ordering rather than assuming it will fit.

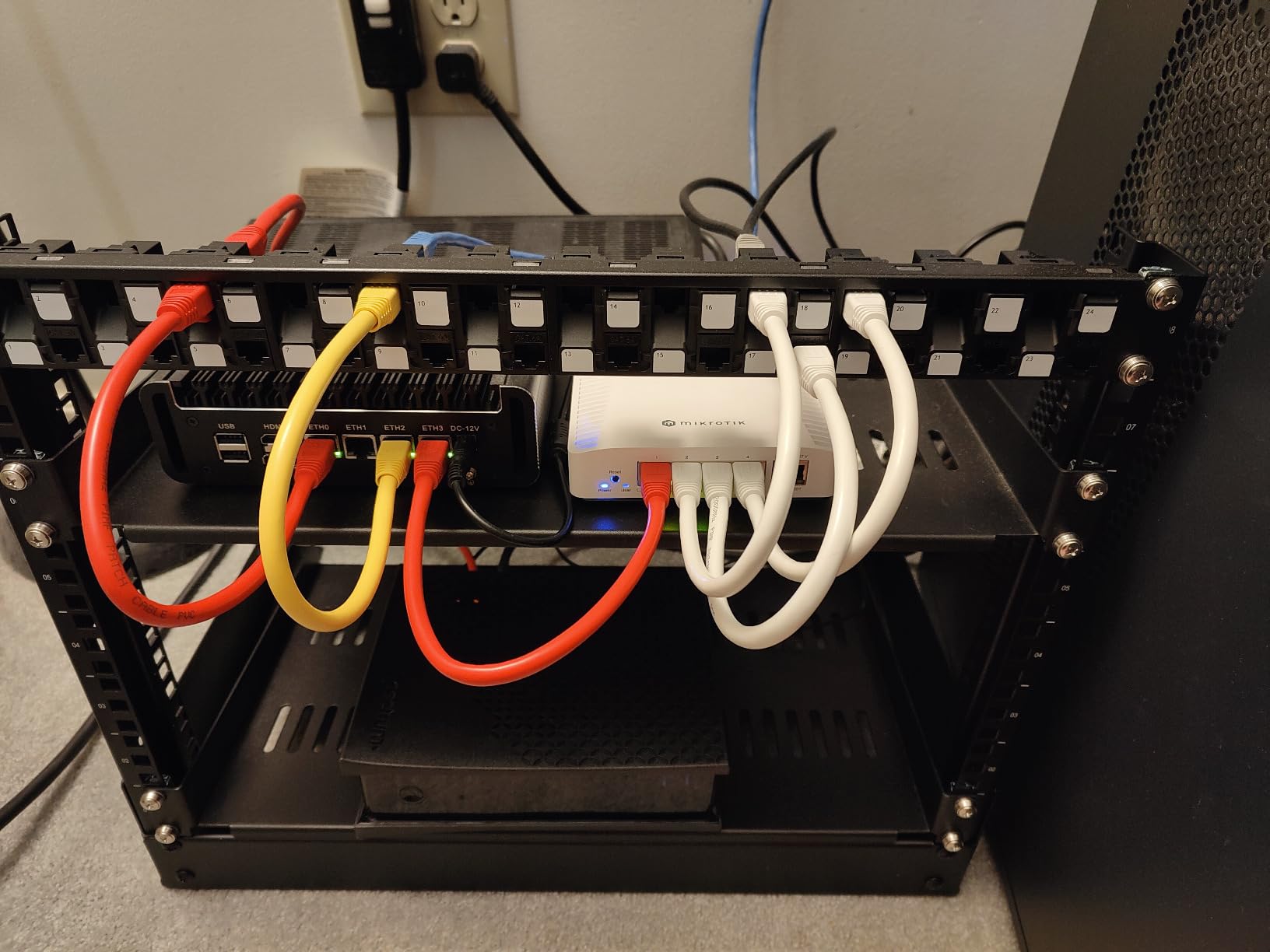

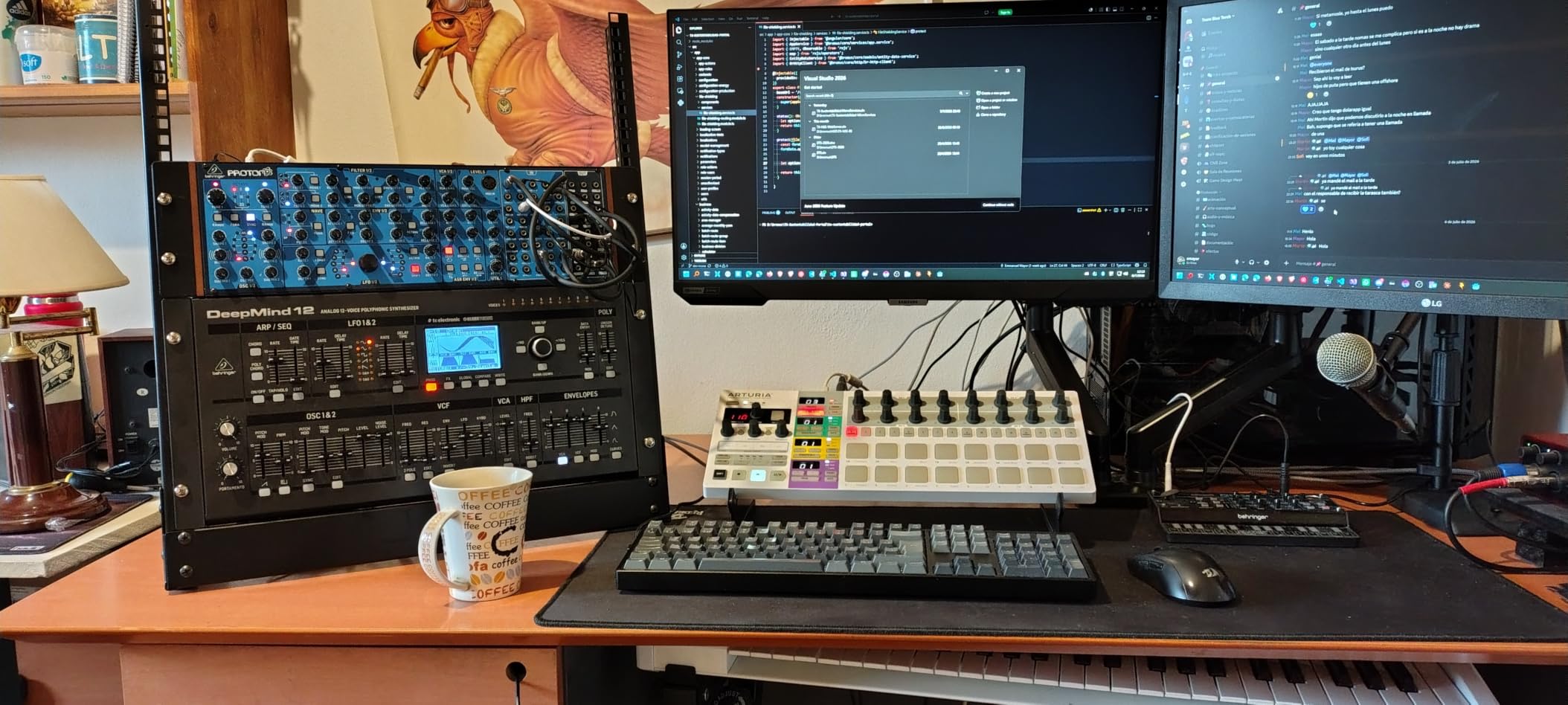

2. StarTech 12U 2-Post Desktop Rack (RK12OD) – Budget Pick
StarTech 12U 2-Post Desktop Open-Frame Rack, 19in, 110lb, TAA (RK12OD)
12U 2-post desktop frame
19in wide
110lb capacity
2.55kg
Pros
- Compact 23in desktop footprint
- Weighs only 2.55kg so it is easy to move
- Open frame gives full front and rear access
- U heights marked on the rails
- Cage nuts and screws included
Cons
- 110lb rating is modest for a UPS
- Needs a shelf for non-rack-mount gear
- No dust or physical protection
This is the rack we recommend to anyone whose lab is a switch, a patch panel, and maybe a firewall. There is no enclosure, no depth adjustment and no casters, and that simplicity is exactly why it works. It weighs about 2.55 kg, so one person can carry it, and it assembles on a desk or a table in minutes.
The 4.7 star average across more than 1300 reviews is unusually strong for a piece of steel this plain. Owners consistently mention the small footprint, the quick assembly and the marked U heights on the rails, which sounds minor until you are mounting eight devices by feel in a dim closet.
A 2-post frame has two vertical rails instead of four, which means heavy equipment can rack without a front rail in the way of the screws. The tradeoff is stability, and this one handles it because it is light and short. StarTech rates it to 110 lb, or 50 kg, and includes M5 cage nuts and screws rather than the M6 hardware used on the larger frames.
The limitation that catches people is depth. At 11.5 inches deep, this rack is built for switch-depth equipment, so anything with deep cooling or a long cable tail needs a different home. Plan on adding a cantilever shelf for anything that is not rack-mountable, and check that the shelf you buy uses the same hole standard.
Why it still earns the value slot
StarTech backs this rack for life with free lifetime technical support, which is rare in the category and removes most of the risk of buying the cheapest frame. The M5 hardware is also easy to source, so a lost screw is a two-minute fix rather than a project.
Because it is a desktop model, you can keep it on a shelf above a desk instead of dedicating floor space. That is the entire appeal for many first-time builders, and it is why this rack shows up in so many beginner home lab threads.
When it will not work
It will not hold a 2U NAS, a server, or a rack-mount UPS, because 110 lb of rating sounds generous but the depth is the real blocker. There is also no cable management to speak of, so a front panel without a patch panel will end up as a bundle of hanging cords.
If you plan to add a second switch, a firewall and storage within a year, start one size up instead. The cost difference now is much smaller than the cost of a second rack later.

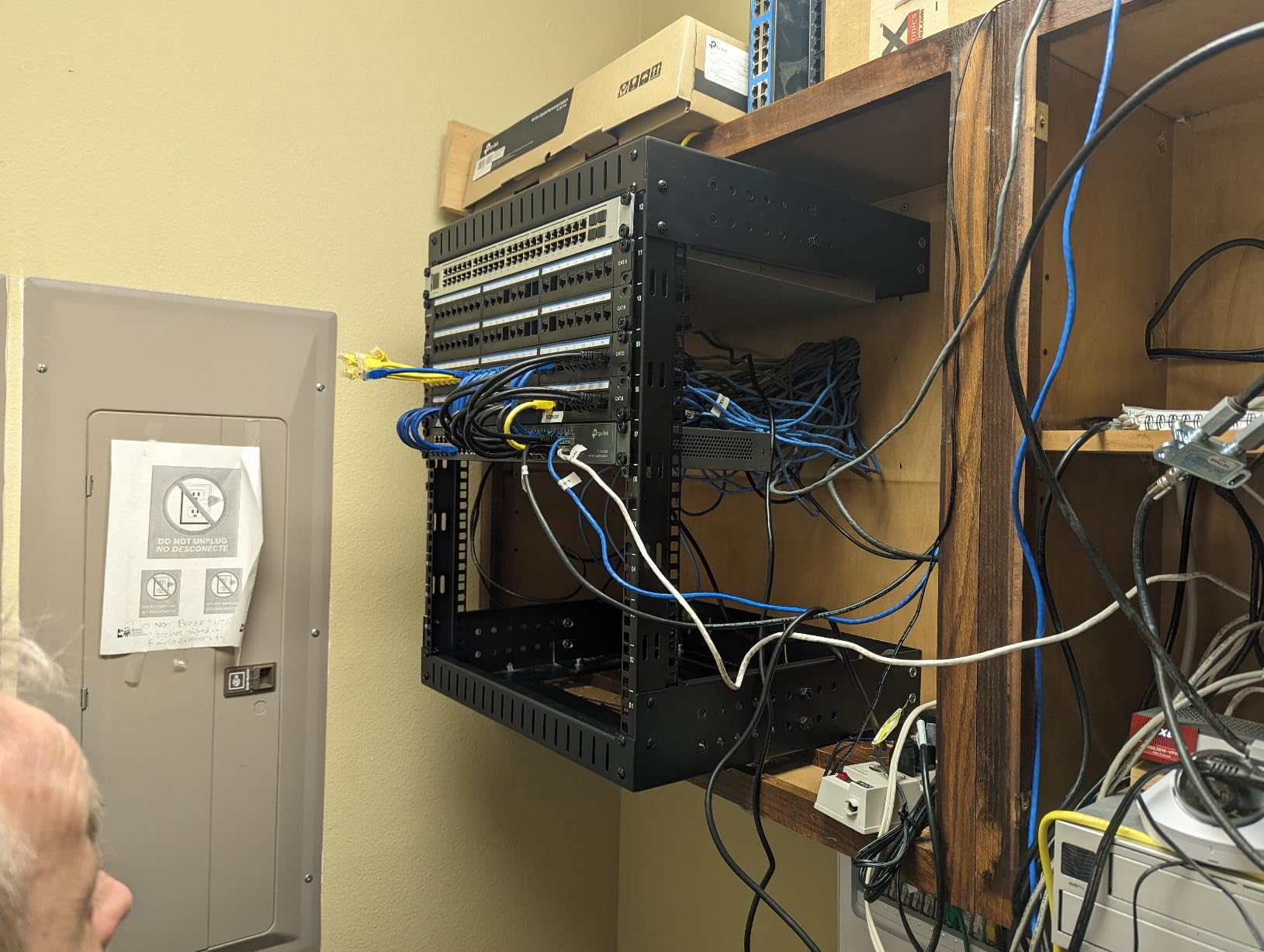

3. StarTech 12U 2-Post Wall Mount Rack (RK12WALLOA) – Best Wall Mount
StarTech 12U 2-Post Wall Mount Open Frame Rack, 19in, 200lb (RK12WALLOA)
12U 2-post wall mount
12-20in adjustable depth
200lb capacity
14.6kg
Pros
- 12-20in depth adjustment
- SPCC cold-rolled steel rated to 200lb
- Light enough for a one-person lift
- Open frame keeps airflow and cable access simple
Cons
- Wall mounting fasteners not included
- Heavier than it looks so get a helper
- Some units lack printed U markings
Wall mounting is the single best space decision most home labs make, and this is the rack we would hang on a closet wall. The depth adjusts from 12 to 20 inches, so you set the position once to match your gear and forget about it, and the rails stay square when loaded.
The 200 lb rating on SPCC cold-rolled steel is the best we found on a wall-mounted frame in this roundup. That headroom matters specifically for the UPS problem, since a wall rack rated at 110 lb with a 50 lb UPS plus a NAS is already working against its limit.
Low-voltage installers and home lab owners rate it 4.7 across 438 reviews, and the adjustable depth is the feature mentioned most often in the reviews. The finish quality comes up constantly too, which is unusual feedback for an open frame at this level.
Two practical notes before you order. The rack does not include wall-mounting bolts or fasteners, so pick up lag bolts or structural screws sized for your wall type first. And at 14.6 kg it is heavy enough that a second pair of hands, or a plywood backer board behind the studs, is a sensible precaution.
Is a wall mount strong enough for a UPS
Yes, provided you anchor it into studs rather than drywall alone, and provided the load stays under the rating. For a typical 2U UPS in the 40 to 60 pound range plus a few pounds of network gear, a 200 lb rated frame has plenty of margin.
Keep the UPS on the bottom mounting position so its weight sits close to the wall and low in the cabinet, which reduces the leverage on the anchors. Leave a few inches of clearance below it for airflow, since a UPS in a sealed corner runs hotter.
Where the mounting gets awkward
Some units arrive without printed U position markings, so measure and mark your own before mounting anything. The rails themselves are described as precisely aligned and they accept standard rack screws cleanly, which is the part that actually affects your build time.
Because it is a 2-post open frame, cable management is entirely on you. Pair it with a patch panel, and the front of the rack stays tidy without buying an extra cable manager.

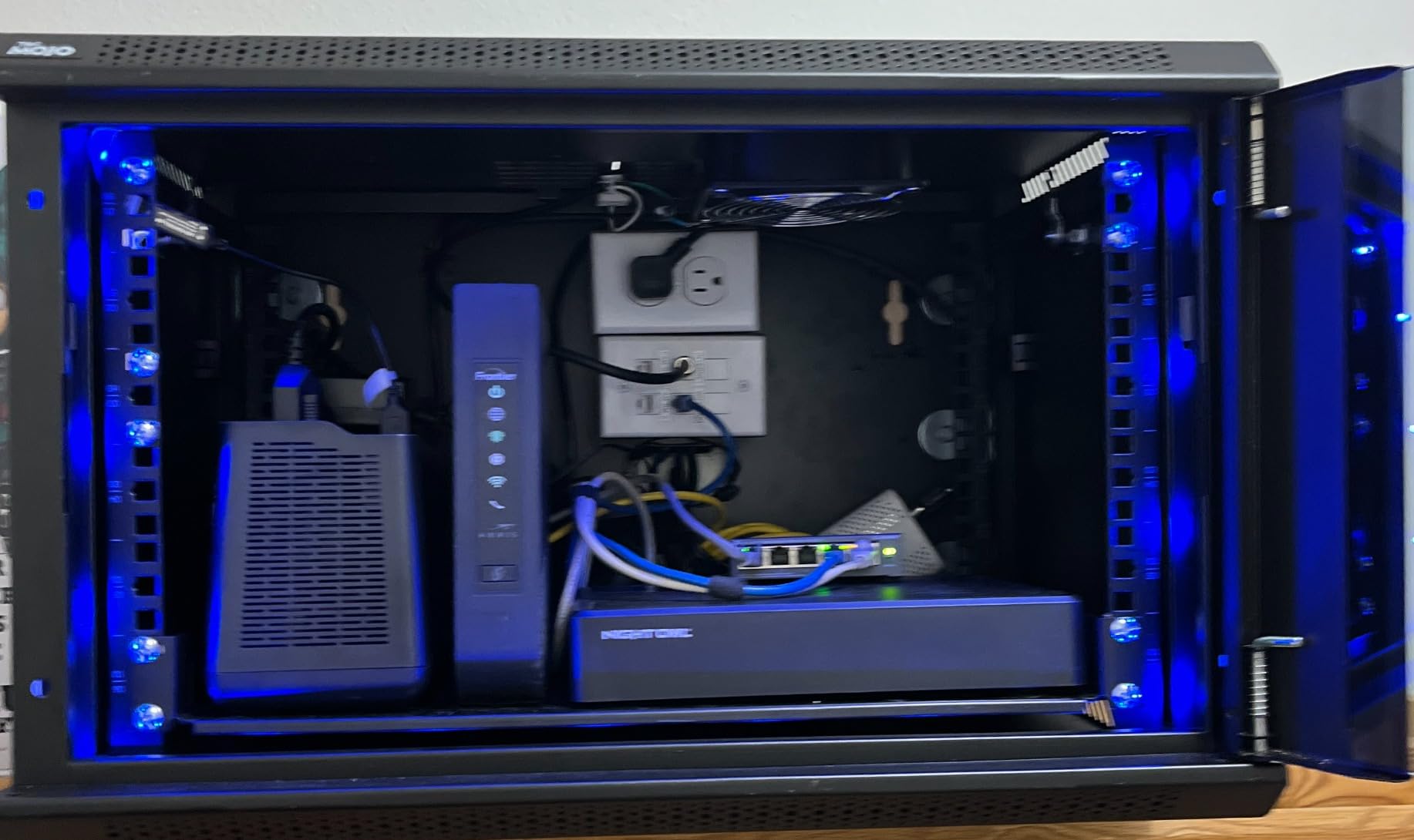

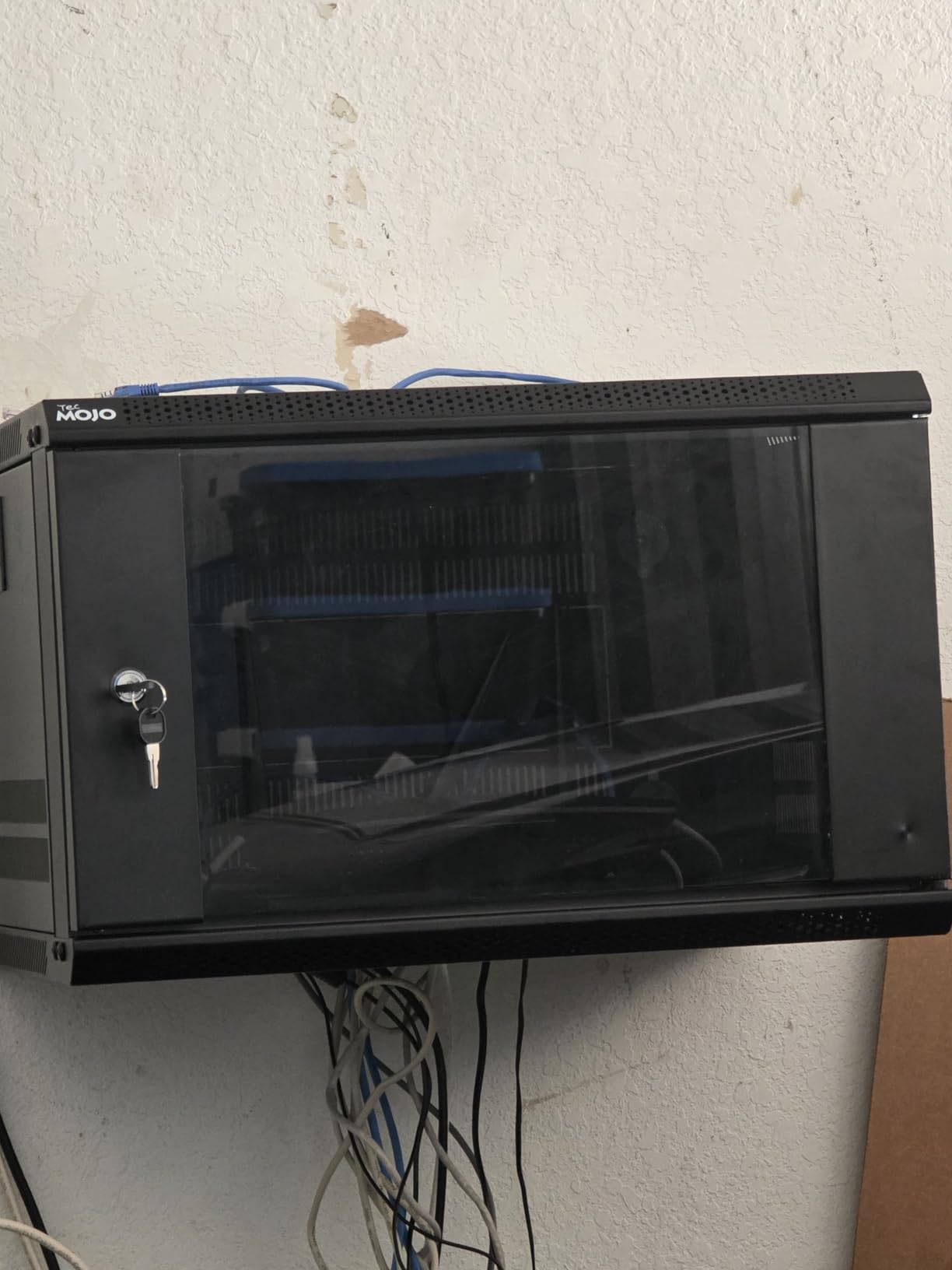

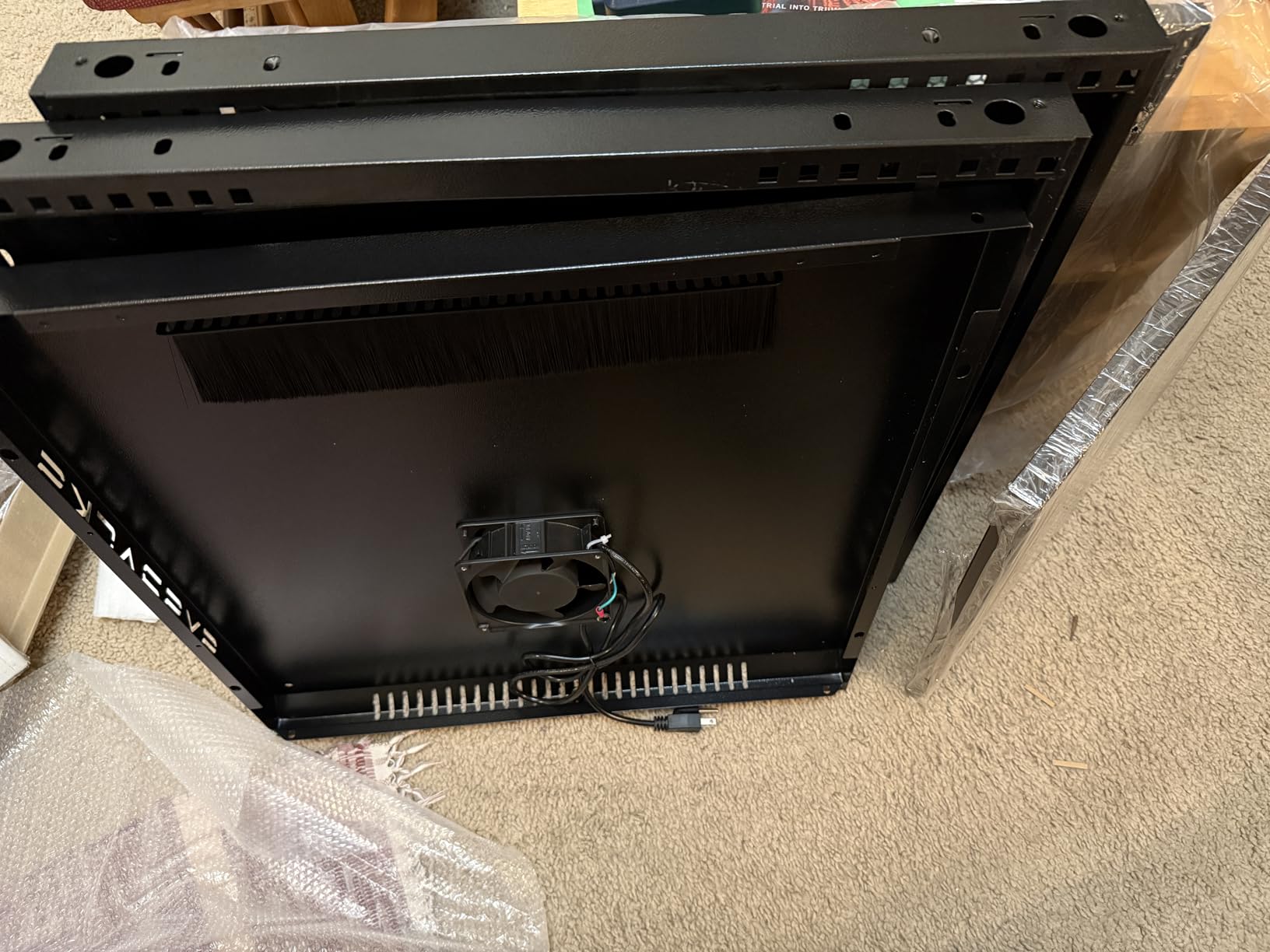

4. Tecmojo 6U Lockable Wall Cabinet – Best for Tight Closets
Tecmojo 6U Wall Mount Server Cabinet IT Network Rack Enclosure Lockable Door and Side Panels Black, Cooling Fan, Standard Glass Door, 450mm Depth, for 19” IT Equipment, A/V Devices
6U wall mount cabinet
14.2in usable depth
110lb capacity
Locking glass door
Pros
- Lockable tempered glass door and side panels
- Door hinge mounts on either side
- Numbered U positions with square holes
- Top and bottom punch-out cable panels
- Cooling fan and hole template included
Cons
- Usable depth is only about 14.2in
- Fan takes roughly 1U and adds some noise
- Included cage nuts are smaller than standard M6
When the room is a closet, a bedroom, or a shared wall, an enclosed cabinet is worth more than an open frame. This one gives you a lockable tempered glass door, locking side panels, and a body that keeps cable clutter and dust out of sight. It holds 6U, so it suits a compact lab rather than a growing one.
The reversible hinge is a detail we did not expect to care about and then relied on. Being able to install the door on either side means the swing matches the direction the door of the room opens, which saves an awkward half door in a tight closet.
Rated to 110 lb of cold-rolled steel with EIA/ECA-310-E, PCI and HIPAA compliance, this is a communications cabinet rather than a server rack. The rails are fully adjustable with numbered U positions and both square and tapped holes, which makes it flexible for gear from different vendors.
Check the depth before you commit. Maximum mounting depth is about 14.2 inches, so this cabinet takes switches, patch panels and firewalls well, and a small NAS only if the NAS is shallow. It will not take a 30-inch rack-mount server, and that is the limitation buyers mention first.
Noise and the cost of the built-in fan
The cabinet comes with a cooling fan mounted at the top, and the included fan consumes about 1U of usable space. Reviewers also describe it as somewhat audible, which is worth weighing in an apartment even though the cabinet itself contributes no noise.
There is no rear cable pass-through, so you will need to drill your own holes in the back panel. Do that before mounting the gear, with the cabinet on a workbench, because drilling a wall-mounted cabinet in place is a genuinely unpleasant job.
Build quality checks before it ships
Occasional bent panels and warped doors are reported on arrival, so inspect the frame and door in the box. The included cage nuts and screws are also smaller than standard M6, which means your own hardware may not fit if you assumed the usual size.
Top and bottom punch-out panels give you clean cable entry once you knock out the pre-scored sections. Budget for a 6U footprint and grow into a 12U cabinet later if the lab expands quickly.

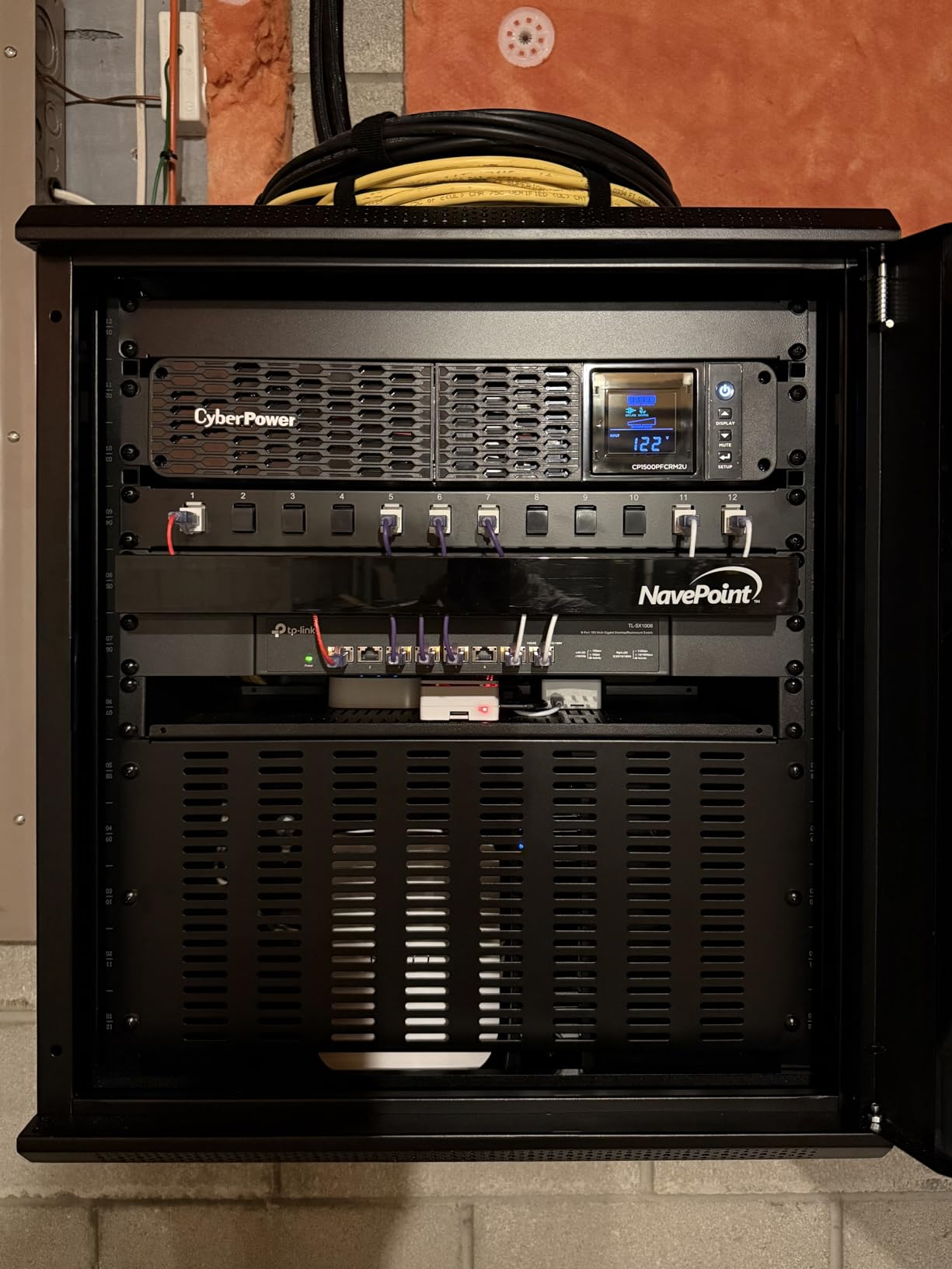

5. NavePoint 12U Glass Door Enclosure – Best for Dust Protection
NavePoint 12U Server Rack Enclosure with Glass Door, Cooling Fan, Locks, & Removable Side Panels – 12U Wall Mount Network Cabinet 19 Inch Rack 17.7″ Deep (450mm)
12U wall mount enclosure
17.72in deep
110lb capacity
Built-in fans
Pros
- Welded cold-rolled steel frame
- Lockable tempered glass front door
- Removable side panels ease cable routing
- Built-in fans with flow-through ventilation
- Compact 17.72in depth suits small rooms
Cons
- Painted threaded holes can strip
- Shelves are only 17in deep
- Usable depth narrows behind the swing door
For a garage, basement or closet that collects dust, an enclosed cabinet is the right call and this is our pick. The welded cold-rolled steel frame, the lockable heat-treated tempered glass door and the removable side panels give you a sealed box that still looks presentable in a hallway.
With over 1200 reviews averaging 4.4, it is one of the most owner-tested cabinets in this roundup. Buyers like the door, the side panels and the ventilation, and the pattern we saw in the reviews is that most of the complaints are about assembly rather than the finished product.
At 17.72 inches deep and 21.65 inches wide, it is a 12U cabinet that still fits a small equipment room. The built-in fans with flow-through ventilation handle the heat load of a small switch, a NAS and a firewall without you adding a fan tray.
Two assembly warnings are worth reading before you buy. The painted threaded holes can strip if a screw is forced, so start every screw by hand, and the spring-loaded swing-gate hinge pins are thin and difficult to seat. Neither is a dealbreaker, but both slow you down on a first build.
What to check about mounting depth
Usable depth narrows once the hinged front door is accounted for, and the included shelves are only 17 inches deep. That is fine for switches, patch panels, firewalls and a shallow NAS, and it is the reason we would not put a deep server in this cabinet.
If you need a real server and also want a door, look at the 24-inch deep swing gate rack later in this guide. Same 12U footprint, more room behind the equipment, and no door to take off when you need rear access.
How to plan the layout inside
Put the UPS in the bottom position, the PDU at the top, and the patch panel directly above or below the switch it feeds. On a 12U cabinet that arrangement leaves plenty of room for a shelf and a couple of blanking panels, and the blank panels are where the dust protection really comes from.
Because the cabinet is a comms enclosure, buying a 12U shelf in the same hole standard matters. Verify the hole spacing before you order accessories, since mixing hole patterns between vendors is a recurring and silent failure.

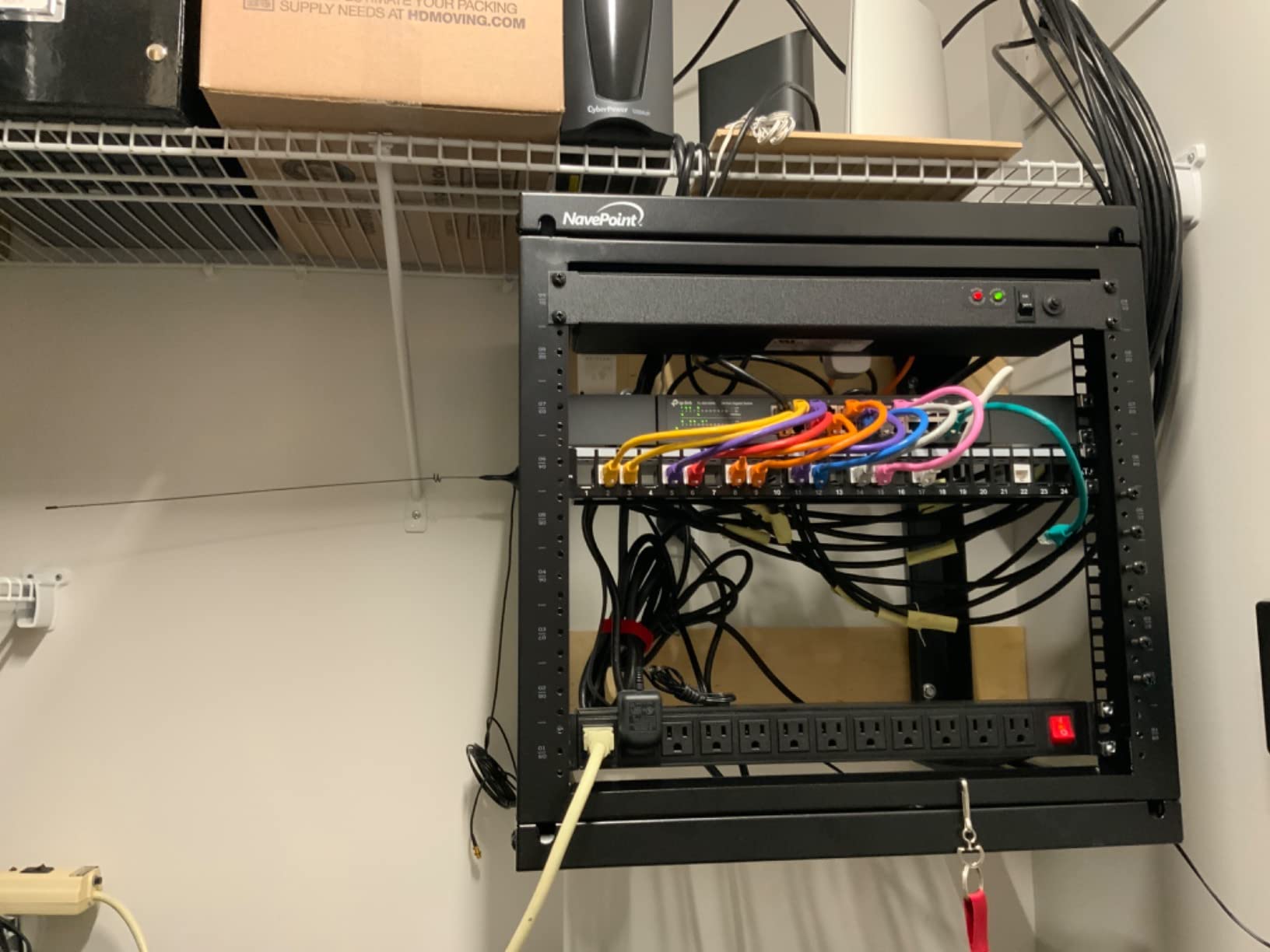

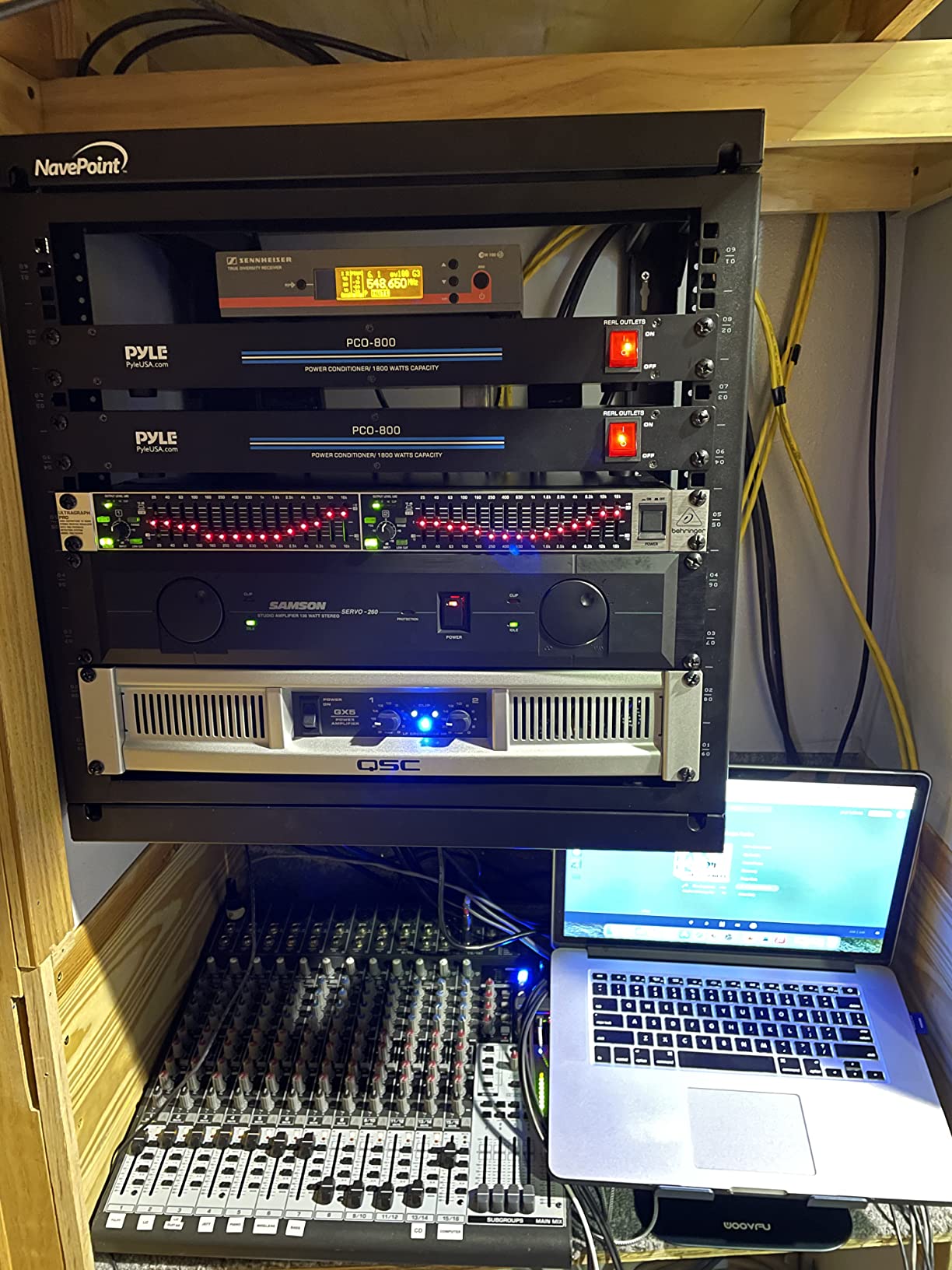

6. NavePoint 12U Swing Gate Rack, 24in Deep – Best for Deep Servers
NavePoint 12U Wall Mount Server Rack – Swing Gate Open Frame for 19-Inch IT Equipment – Network Rack for AV & Server Equipment, 24″ Deep, Black
12U swing gate frame
24in deep
110lb capacity
Removable 180 degree gate
Pros
- Dual-hinged gate opens 180 degrees from either side
- Gate fully removes for assembly and service
- 24in depth fits deeper servers and cable routing
- Open frame promotes passive cooling
- Works on the floor on a desk or on a wall
Cons
- Threaded-hole side strips and can pop screws
- Hinge pins are hard to engage
- Weight limit drops when the gate is open
This is the answer to the shallow-rack problem. At 24 inches deep it handles the deeper servers better than any other wall-mountable option here, and that extra depth is exactly what a 1U or 2U server with a long cable tail needs to sit properly with airflow behind it.
The swing gate is the clever part. It hinges from both sides so it opens 180 degrees in whichever direction you need, and it lifts off entirely for assembly. On an open frame that seems redundant until you are trying to reach the back of a switch with the frame already full.
Reviewers confirm the steel construction is solid and that wall mounting is straightforward, and they also point to the gate as the weak point in this model. The 1.5 mm cold-rolled steel frame is powder coated black, and the front gate offers threaded holes on one side and universal square rack holes on the other so you can mix hardware styles.
The 110 lb rating is on the lower side for a frame meant to hold a server, so keep an eye on the total. A deep server with four drives plus a UPS will eat that figure faster than you would expect, which is why we would not pair this rack with a 2U UPS in the same cabinet.
Two mounting issues to plan for
The mounting holes sit about 18.25 inches apart, which does not line up with standard 16 inch stud spacing, so most installs need a plywood backer board screwed into the studs. The supplied lag bolts are also too short for a drywall-then-stud install, so bring your own fasteners.
Because the frame is open, it works equally well on the floor, on a desk or on a wall. That flexibility makes it a good pick for someone who is not sure yet whether the lab belongs in an office or a garage.
Working around the gate weakness
The threaded-hole side of the gate strips easily and can pop screws out under load, and the spring-loaded pivot hinge pins are difficult to seat and stop swinging freely once the gate is loaded. The workaround that comes up repeatedly in reviews is to mount your equipment on the square-hole, cage-nut side of the gate instead.
Also note that the usable weight limit drops sharply while the front is swung open for service, so support heavy gear rather than hanging it on the open gate.

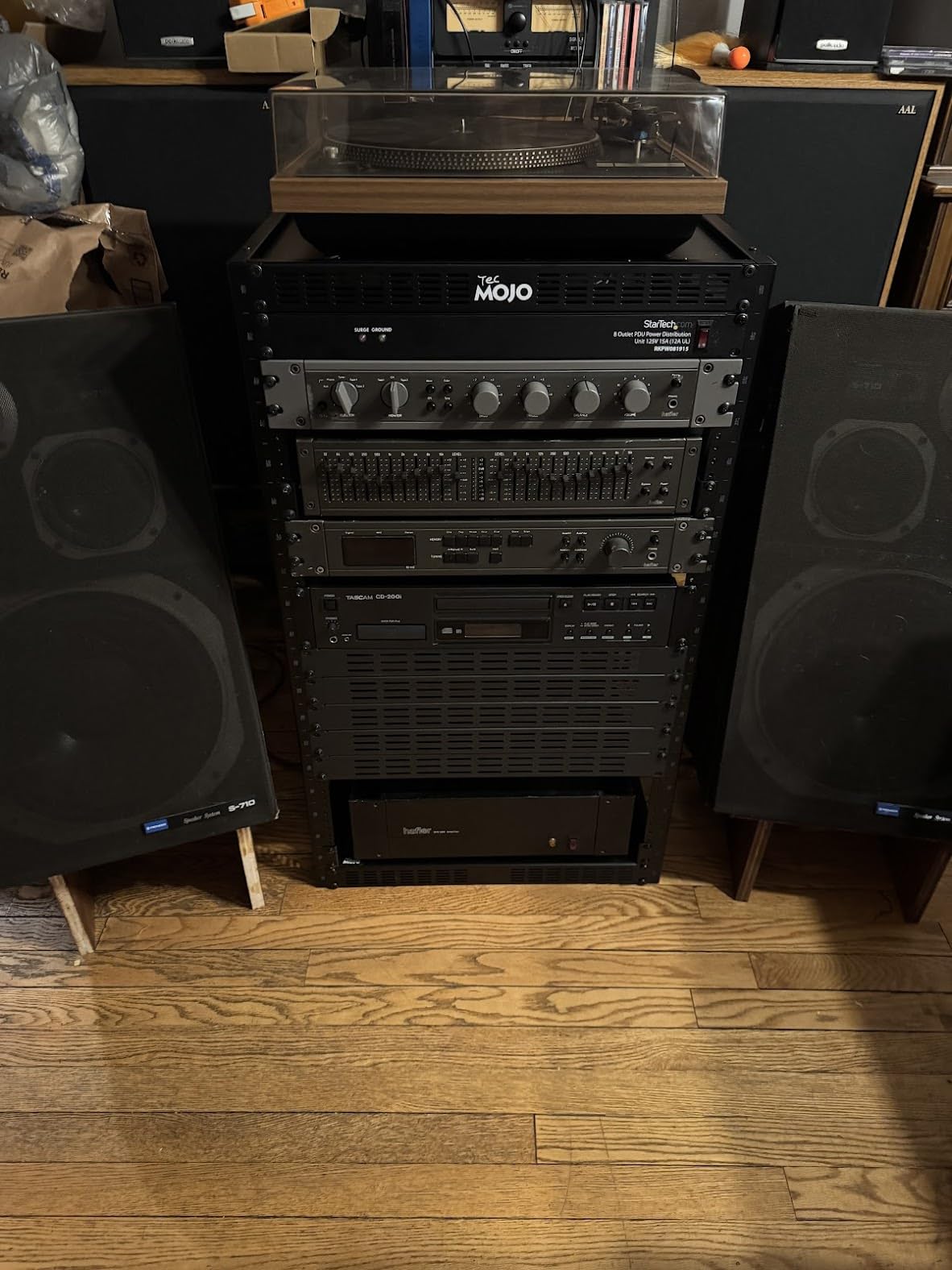

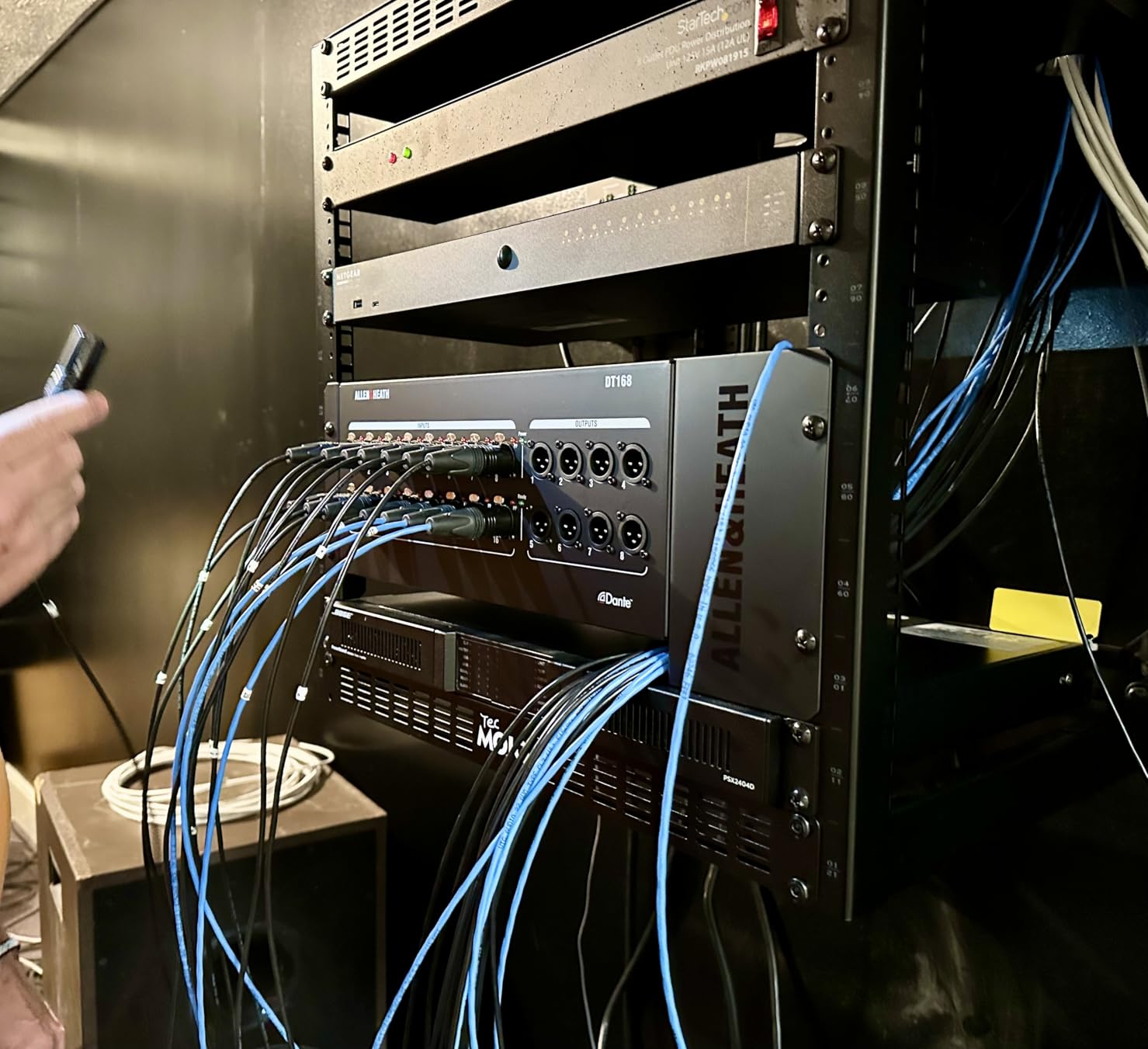

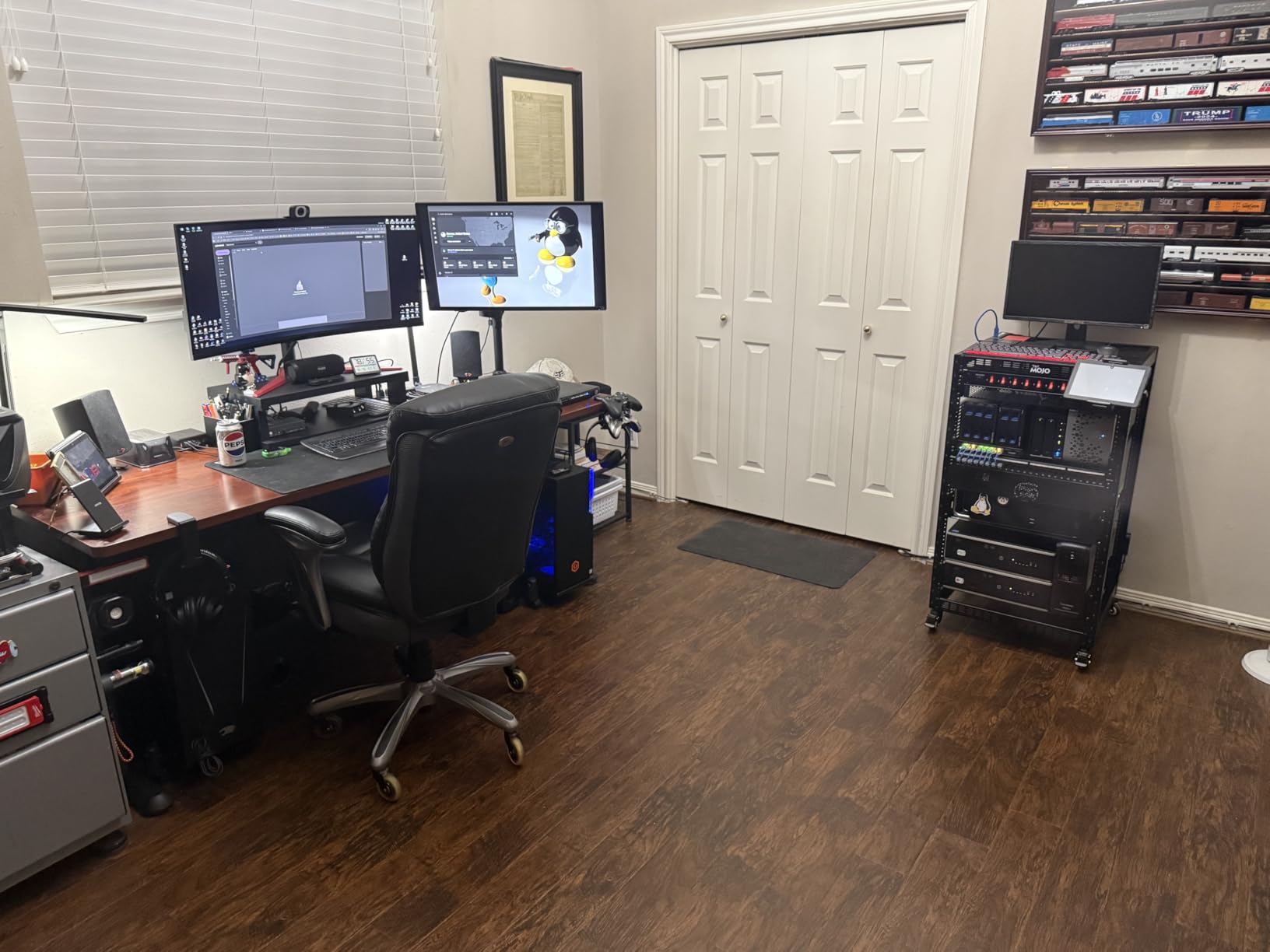

7. Tecmojo 12U Open Frame with Shelves – Best Starter Bundle
Tecmojo 12U Open Frame Network Rack for IT & AV Gear, AV Rack Floor Standing or Wall Mounted,with 2 PCS 1U Rack Shelves & Mounting Hardware,Network Rack for 19″ Networking,Audio and Video Device
12U open frame
130lb wall mounted
260lb floor mounted
Two 1U shelves
Pros
- Two ventilated 1U shelves and stops included
- Runs free standing or wall mounted up to 130lb
- Cold rolled steel is square and solid once assembled
- Drilling template and assembly video included
- Velcro straps and screws in the box
Cons
- Cross supports use about 2U of the 12U
- Holes are not cage-nut compatible on all faces
- Painted threads can strip during assembly
If you are starting from zero, the accessory bundle is the reason to pick this one. You get two ventilated 1U shelves, four shelf stops, four velcro straps and mounting screws in the box, which removes the first shopping trip a new builder usually has to make.
It is also unusually flexible about where it lives. The same frame works free standing, on a table, or wall mounted, and Tecmojo rates it to 130 lb wall mounted and up to 260 lb on the floor. That range covers a switch, a NAS and a small UPS comfortably.
The 4.5 star average across 442 reviews reflects that value approach. Owners consistently praise the two shelves and the accessories bundle, and a common theme in the reviews is that buyers plan to buy again in a larger size once the lab grows.
The documentation is better than most in this category, with a drilling template for the wall holes, a printed manual and an online assembly video. On a product with painted hardware that is genuinely useful, because it is the two most common complaints at once.
Count the U carefully before you buy
This is the most important thing to know about a 12U frame that is not a full 12U frame. The front and rear cross supports consume about 2U, leaving roughly 10U usable, so plan your equipment list against 10 rather than 12.
The holes are also not cage-nut compatible on all faces, so plan to screw equipment directly into the frame on the affected faces. That means having the right screws on hand rather than assuming the standard M6 cage nut and screw set will fit everywhere.
Assembly notes and fit issues
Painted threads and loose hole alignment can strip screws or cross-thread during assembly, so the practical technique that works is to leave every screw loose until the frame is fully built, then tighten in a second pass.
A further fit issue worth checking is that the side panels are about a quarter inch too narrow for standard 19-inch mounting in some units. If you are adding a side panel or a security door, verify the measurement on your specific box before ordering extra parts.

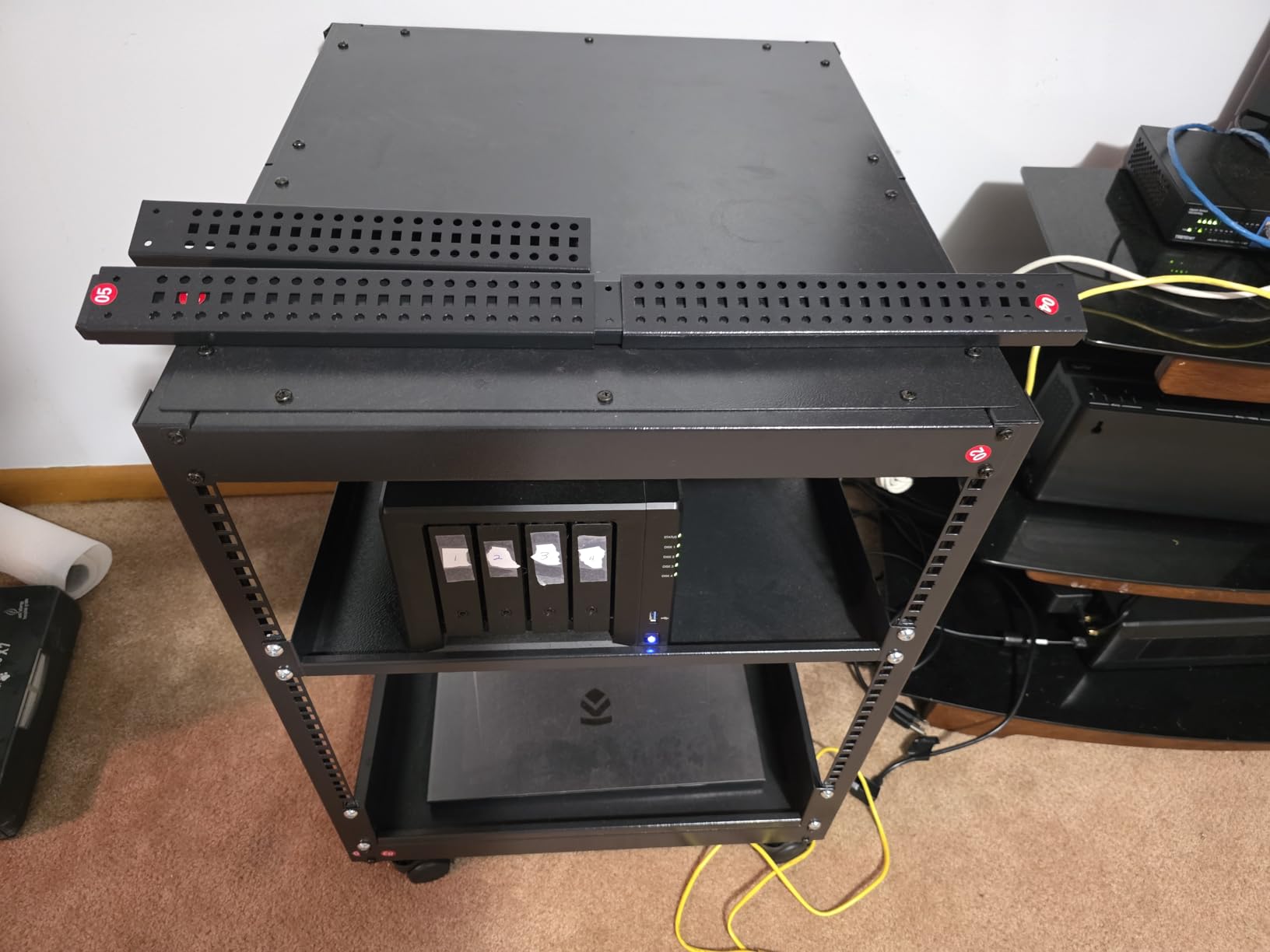

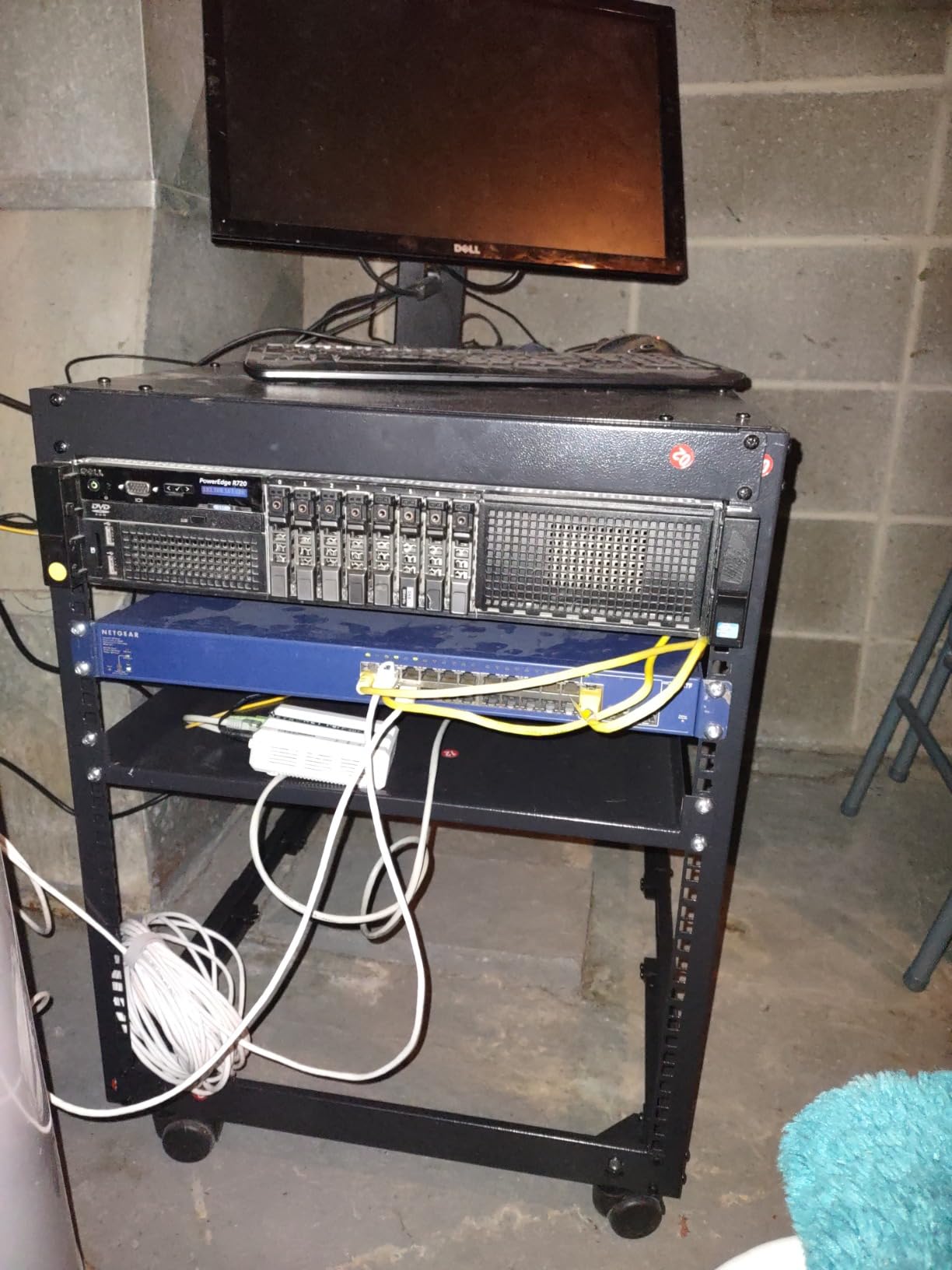

8. VEVOR 12U Open Frame Rack – Best Value
VEVOR 12U Open Frame Server Rack, 23-40 in Adjustable Depth, Free Standing or Wall Mount Network Server Rack, 4 Post AV Rack with Casters, Holds All Your Networking IT Equipment AV Gear Router Modem
12U 4-post frame
23-40in adjustable depth
150lb wall mounted
31.2lb
Pros
- Low cost for a 4-post rack with 23-40in depth
- Castors roll well and leveling feet fix it in place
- Two shelves included for non-rack-mount gear
- Extra M5 screws and 10 cage nuts supplied
Cons
- A power driver is required for nearly every screw
- Holes are not pre-tapped and can strip
- Real-world load is well below the listed rating
This is the most affordable 4-post frame we found, and for a home lab full of consumer-grade switches, a NAS and AV gear, it does the job. The 23 to 40 inch depth adjustment is genuinely the same range as the StarTech frame, and the wheels roll fine even when the rack is loaded.
It is also the lowest rated product in this roundup at 4.0 stars across 936 reviews, with a wide spread of opinions. Fans of the price say it is fine for a home lab, and critics point at assembly, packaging damage and load ratings that do not match reality.
The box includes two pallets or shelves, 145 M5 screws, four casters, four M10 expansion screws, 10 M6 cage nuts, a grounding wire and a manual. That is a generous hardware count for the money, and the extra screws are genuinely useful when you expand.
The four-post carbon steel frame is rated at 500 lb on the ground and 150 lb wall mounted, though reviewers caution that the real-world figure drops once the depth is extended far back. The top panel also stops short of covering the full rack at deeper depth settings, so treat it as a cable cover rather than weather protection.
You need a power driver, not a screwdriver
It cannot be assembled by hand. A power drill or impact driver is required for nearly every screw, and the holes are not pre-tapped, so the powder coating inside the threads can strip screws and drill bits if you rush.
Instructions are hard to follow and parts can arrive misaligned or scratched. The single most useful tip in the reviews is to leave every screw loose until the frame is completely assembled, then tighten. Budget an evening rather than an hour.
When the budget framing makes sense
Pick this rack when your equipment is shallow and light, mainly switches, patch panels, a firewall and a NAS. Skip it when a heavy UPS or a deep server is in the plan, because a frame that is already marginal at full depth gets worse as you add weight at the back.
If your tolerance for assembly friction is low, the extra money for the StarTech 4-post frame buys square rails, a complete hardware bundle and a two-year warranty. For a first build where you have never assembled a rack, that difference pays for itself.
9. Sysracks 6U Rack with PDU and Fan – Best All-in-One Kit
6U Wall Mount Server Rack Cabinet – 19″ Network Rack Enclosure, 24″ Deep Data Rack Cabinet with Fan, PDU & Shelf for IT Equipment, Switches and Patch Panel
6U wall mount cabinet
20in usable depth
133lb wall mounted
PDU and fan included
Pros
- Comes with PDU fan vented shelf and brush entry panels
- Heavy gauge steel with a durable powder coat
- Hardware sorted into labeled bins with a cage nut tool
- Detailed illustrated manual and strong packaging
- Locking glass door and removable side panels
Cons
- 20in usable depth is shallow for enterprise servers
- Sheet metal is thinner than commercial racks
- Included PDU and side locks are basic
This cabinet comes with the accessories that normally take a second order. The kit includes a vented steel shelf, an 8-port 15A surge-suppressed PDU, a 120V fan, leveling feet, brush cable entry panels and the mounting hardware, which is the clearest all-in-one package in this roundup.
It is aimed at switches, routers, patch panels, NAS storage, PoE equipment and structured cabling, and at 6U with 20 inches of usable depth in a 24 inch overall body, it suits a home network far better than it suits a server room.
Buyers consistently single out the packaging and the hardware organisation. The hardware arrives sorted into labeled bins and includes a cage nut compression tool, and the illustrated manual is clear enough that this is one of the easier cabinets here to assemble without a second person.
It is rated to 133 lb wall mounted and 200 lb on the leveling feet, and the reinforced steel body with a locking tempered glass door and removable side panels keeps gear secure and visible. The venting is a mix of passive structure and a top-mounted fan, which is a reasonable balance for a 6U cabinet.
What arrives in the box matters here

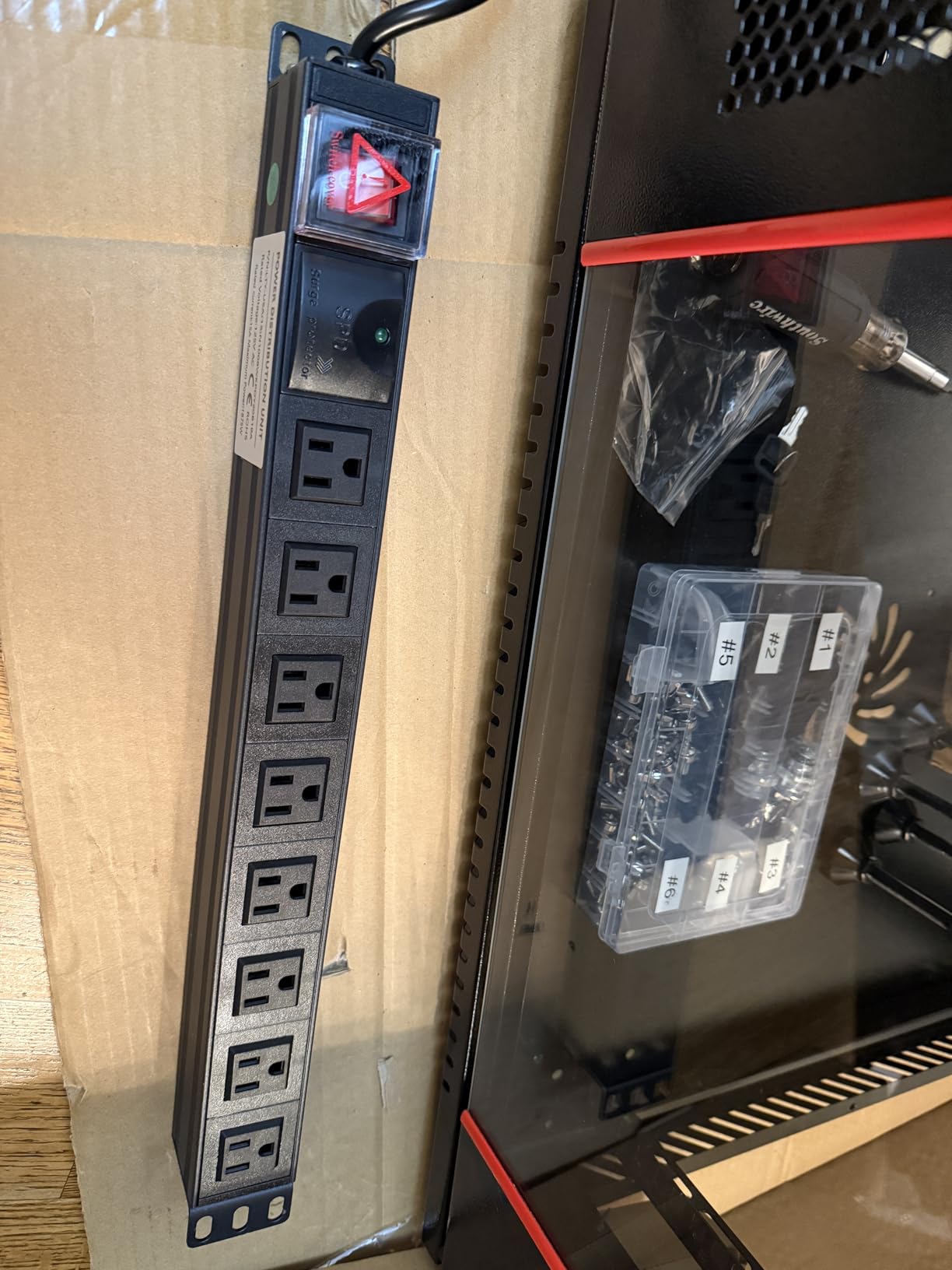

Most racks in this guide give you cage nuts and screws. This one gives you a PDU, a fan, a shelf and brush entry panels, so a beginner can build a working cabinet in a single afternoon without a second order. The double cardboard and foam packaging is also stronger than most for a 55 lb cabinet.
The included PDU is basic compared with the door lock, so if you plan a larger build you will probably replace it later. For a 6U cabinet with a switch, a patch panel and a small NAS, the supplied strip is adequate.
Where the limits show
At 20 inches of usable mounting depth, this is not a server cabinet despite the name. It suits desktop-class gear and home networking well, and it will not take most enterprise servers, which is the single limitation buyers mention most.
The sheet metal is thinner than commercial racks, which keeps the weight down at 55 lb but reduces rigidity when the door is open. The rear panel is also screwed down, so plan your cable routing before the gear goes in.

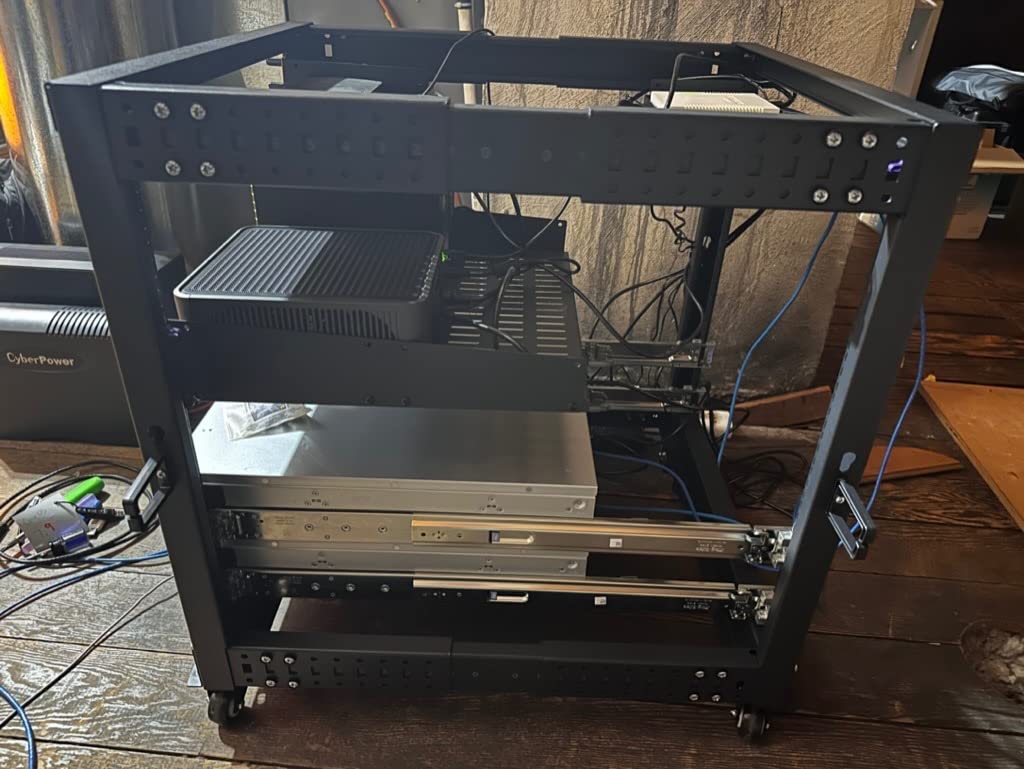

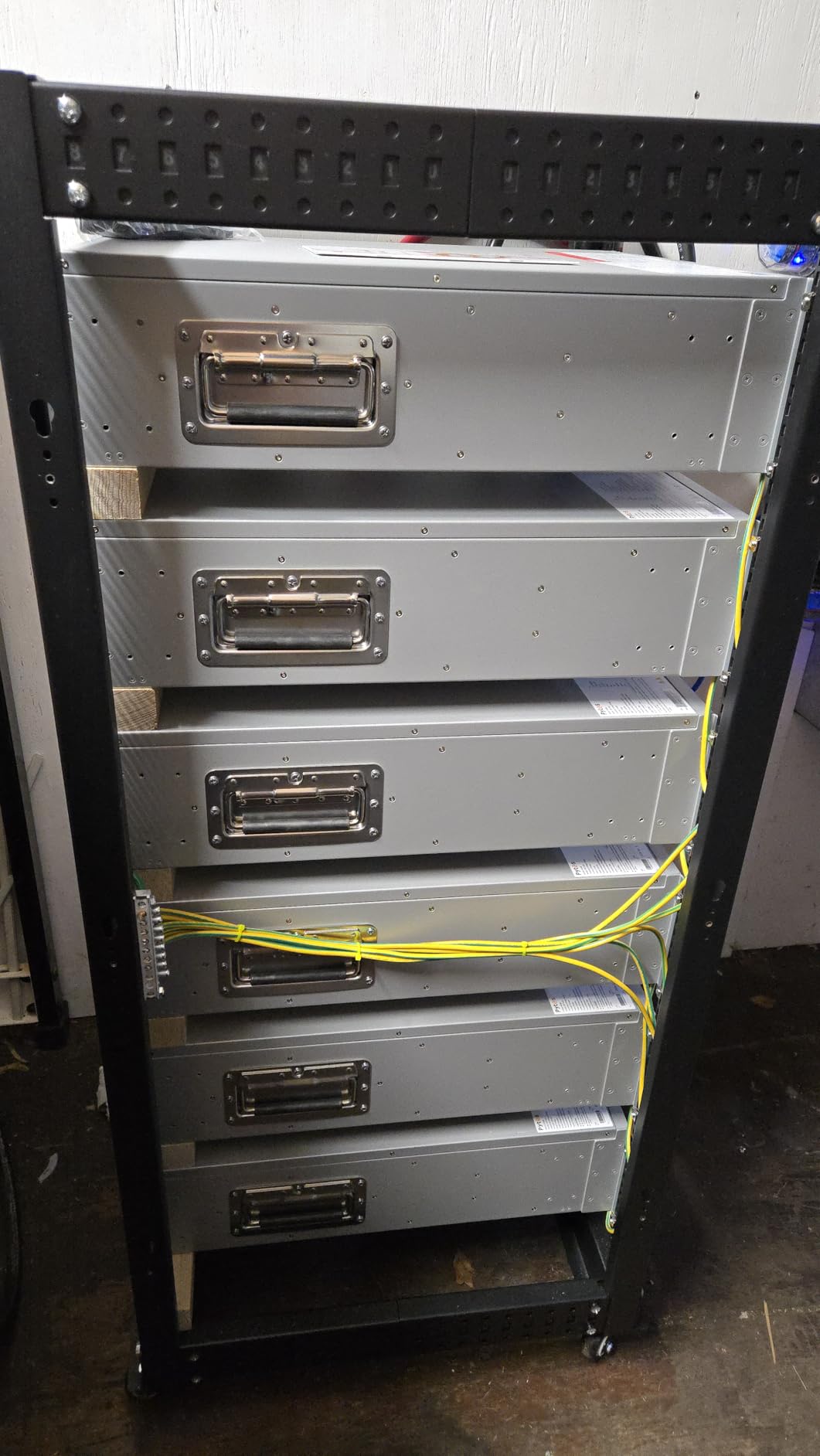

10. VIVO 12U Mobile Server Cart – Best for Rolling Racks
VIVO Black 12U Freestanding Server Rack Cart, CART-SR12U
12U mobile cart
22-40in depth
1200lb capacity
47.1lb
Pros
- Four casters roll smoothly across floor types
- Adjustable 22-40in depth in 1in increments
- Steel construction rated to 1200lb
- Open frame gives airflow and access from all sides
- All hardware and instructions included
Cons
- Wider and taller than a typical 12U rack
- No physical security or dust protection
Rolling racks are the most common advice in home lab forums, because the difference between a rack you can wheel out and a rack you have to unplug is enormous. This cart has four casters and leveling feet, so you can move a loaded rack, work on it, and lock it back in place.
The depth adjusts from 22 to 40 inches in one-inch increments, which is more precise control than most frames at this size offer. The steel frame is rated to 1200 lb, and the open design gives you airflow and access from every side without any fan noise.
Reviews highlight smooth mobility and the wide depth range most often, and the 4.7 star average across 117 reviews reflects a product that does a simple job cleanly. It comes with four caster wheels, leveling feet, hardware and instructions, with a three-year warranty behind it.
At 23.5 inches wide, 28.3 inches high and up to 40 inches deep, this is the largest footprint in the roundup at full extension. Plan the floor space before ordering, since a 12U cart at 40 inches deep is a substantial object in a room and one of the largest footprints here.
Casters are the whole point
The four casters roll smoothly across different floor types, and the leveling feet let you stabilise the cart once it is in position. If you have ever had to unplug six devices just to reach one cable at the back, this is the feature that pays for itself first.
A recurring piece of advice from builders is to consider heavier-duty caster upgrades, because the casters supplied with rack carts are often the first part to feel light once the cabinet is fully loaded. Check the rating before you load it with storage.
Where it does not fit
The open frame offers no physical security and no dust protection, so this is a garage, basement or workshop cart rather than a living space one. In an apartment, a cart you have to wheel around every time you touch a device is also easy to bump into.
The other limit is the footprint. If your space is tight, a wall-mounted 12U frame gives you the same rack units in a fraction of the floor area, and you lose the mobility in exchange.
11. GeeekPi DeskPi RackMate T1 8U Mini Rack – Best 10-Inch Pick
GeeekPi 8U Network Rack, 10 inch Mini Server Rack for Network, Servers, Audio, and Video Equipment, DeskPi RackMate T1, 7.87 inch Depth
8U mini rack
10in wide aluminum frame
7.87in deep
4.5kg
Pros
- Very compact 10-inch form factor that fits a desk or shelf
- Thick aluminum frame with precisely aligned threaded holes
- Translucent acrylic sides give visibility and light dust protection
- Open design keeps devices cool
- Large community of 3D-printable accessories
Cons
- About 7.9in depth and 8.5in rail width exclude 19-inch gear
- No built-in fans or power distribution
- Assembly instructions are basic
If your lab is single-board computers, mini PCs and small network devices, the 19-inch ecosystem is oversized and this is the answer. The DeskPi RackMate T1 is an 8U, 10-inch wide mini rack in machined aluminum with translucent acrylic side panels, and it sits on a desk or a shelf rather than on the floor.
The frame is thick aluminum with precisely aligned threaded mounting holes, so unlike the painted steel frames in this roundup, there is nothing to strip and nothing to hunt for. The open design keeps several running devices cool without any moving parts, which also means zero added noise.
Home automation and Raspberry Pi owners rate it 4.6 across 315 reviews, and the finish and hole alignment come up constantly. The 3D-printable accessory ecosystem is the other big theme, because this platform has a large community of printed mounts, trays and brackets.
Measure carefully before you commit, because the clearance is tighter than the 10-inch marketing width suggests. Rail-to-rail width is about 8.5 inches and depth is about 7.9 inches, so most 19-inch equipment and anything wider than that will not fit at all.
What it fits and what you must add
Plan on building your own power story. There are no built-in fans and no power distribution, so you add a mini PDU and, if you want one, a small fan module. Plenty of owners run fanless mini PCs in this chassis specifically to avoid both noise and extra power draw.
Single-board computers, small network switches, a PoE hat setup and mini PCs with 3D-printed trays are the natural fit. Storage is possible with the right printed caddy, but check the depth budget before you commit to a multi-drive box.
Handling and assembly notes
Acrylic panels can scratch during handling, and occasional units arrive with cracked or misassembled acrylic parts, so open the box and check before you start. The assembly instructions are basic, and the top panel is the fiddly piece to fit.
Support is listed at six months, which is shorter than the hardware warranties on the steel racks here. That is a fair trade for the footprint and the finish, but it is worth knowing if you are building something you intend to keep for years.

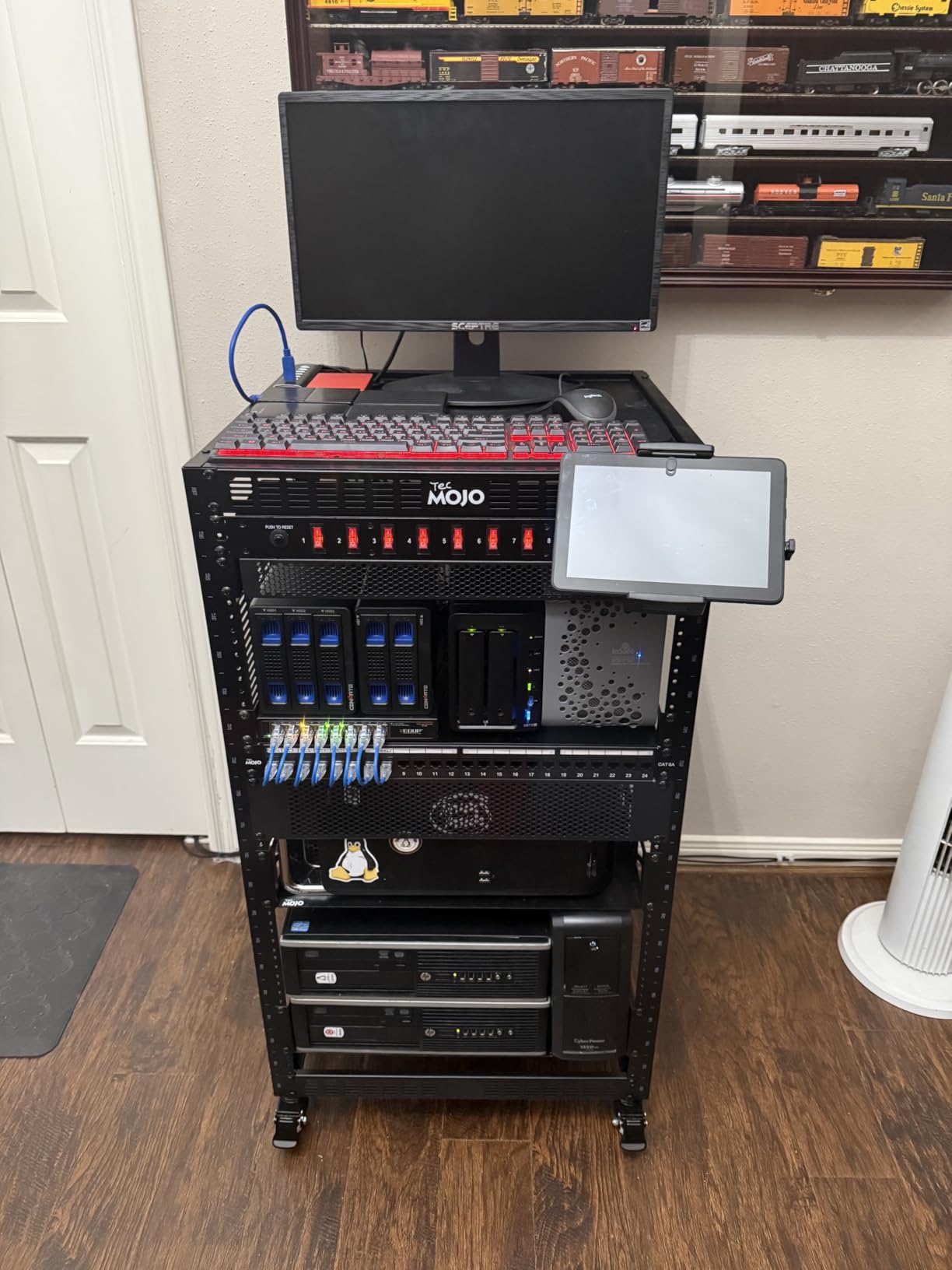

12. Tecmojo 12U 4-Post Rack with Casters – Best for AV and Network Gear
TECMOJO 12U Open Frame Network Rack for IT & AV Gear, 4-Post With Casters, Mobile With 2 PCS 1U Server Shelf & Mounting Hardware, for 19″ Network, Audio and Video Device
12U 4-post frame with casters
260lb capacity
31.7lb
Two 1U shelves
Pros
- Four-post frame rated to 260lb is more rigid than 2-post
- Four casters plus leveling feet and a top panel
- Two ventilated shelves and velcro straps included
- Anti-slip shelf stops keep devices in place
- Manual template and assembly video included
Cons
- Four-post frame is bulkier and harder to move through doorways
- Cross members reduce usable space below the label
- Holes are not fully cage-nut compatible
This is the 4-post frame to buy when your lab is as much media and AV gear as it is servers. A four-post design is more rigid than a 2-post rack, and at 260 lb the rating gives you room for a NAS, several devices and a modest UPS on a single frame.
It comes with two ventilated shelves, four shelf stops, four casters, four velcro straps and mounting screws. The anti-slip shelf stops are the detail we liked most, because consumer network and AV hardware on a plain shelf tends to walk out of position over time.
The top panel doubles as a work surface, which is useful for a rack you keep in a garage or a media closet where you need somewhere to rest a laptop while you patch cables. With four casters and leveling feet, it moves and then stays put.
At 4.3 stars across 200 reviews, it sits in the middle of the field here, and the feedback is consistent: the frame and the accessory bundle are well received, while the hole and thread quality slow assembly down. Owners rate it 3-year manufacturer warranty.
Rigidity versus footprint
The four-post frame is noticeably bulkier than a 2-post rack and harder to manoeuvre through a doorway, so measure your route before ordering. In exchange, the front and rear rails keep heavy equipment from twisting the frame out of square.
Shelf back supports and cross members reduce the usable space below the labelled U count, so plan your layout against the real clearance once the shelves are in, not the number on the box.
Assembly and mounting hardware
The holes are not fully cage-nut compatible on every face, which means some gear screws directly into the frame rather than clipping on with cage nuts. Painted threads can strip or cross-thread, so start each screw by hand and keep a spare set of the right size nearby.
The documentation is a genuine strength. A comprehensive printed manual, a wall mounting hole template and an online assembly video cover the awkward steps that produce most of the complaints about racks in this category.
How to Choose a Home Lab Rack: Open Frame, Enclosed or Wall Mount
Start with where the rack will live, because that single decision eliminates most options. An open frame on casters belongs in a garage, basement or workshop where you can reach both sides of a device. An enclosed cabinet belongs in a closet, hallway or living space where dust and appearance matter. A wall mount belongs wherever the floor is spoken for.
Open frame or enclosed is the next fork, and the honest answer is that airflow is rarely the deciding factor for a home lab. A small switch and a NAS put out very little heat, and a glass-door cabinet with flow-through ventilation handles it. What you gain with a cabinet is security, dust protection and a door that hides cable clutter, which is why cabinets suit apartments and open frames suit utility spaces.
Two-post or four-post comes down to load and stability. A 2-post rack is lighter, lower cost and takes heavy equipment more easily because there is no front rail in the way of the screws. A 4-post rack is more rigid, easier to mount shelves on, and holds its square under a heavy load, which is why it is the better home for a UPS and a multi-drive server.
Depth is where budget racks go wrong. Under 15 inches of usable depth means switches and patch panels only. Around 17 to 20 inches suits a NAS and firewall in a shallow case. At 24 inches and beyond you can take a rack-mount server without compromise, and the deepest 44 inch frames here let you slide the whole thing back for cable management.
Noise is barely discussed in rack buying guides and it should be central in an apartment. The racks themselves are silent, so the noise comes from the equipment inside: fan-cooled drives, a UPS fan and coil whine. An open frame does nothing to contain that. What helps is choosing fanless or low-noise hardware, keeping a UPS at the bottom away from your desk, and closing a cabinet door if the sound is directional.
Cooling follows from the same logic. Front-to-back airflow needs a gap at the front and a clear path at the back, which is why the enclosed cabinets in this guide use perforated doors and flow-through panels. If your gear runs warm, a small quiet fan in a cabinet is better than leaving a sealed door closed.
Load capacity and tip-over safety deserve a real number rather than a vibe. Add up your equipment, add the rack, and keep at least a 30 percent margin. For a wall mount, anchor into studs or add a plywood backer board, and keep the heaviest item low. For a rolling cart, check the caster rating rather than the frame rating, because the wheels are usually the weaker link.
Finally, the small hardware. Cage nuts and M6 screws are not always included, and some frames in this roundup ship with smaller hardware than the standard. Buy a spare box of M6 cage nuts and screws, a cage nut tool, a rack shelf, a patch panel, a PDU and blanking panels, and you will not need another order for a year. Whatever patch panel you pick, pair it with a switch that suits your setup, like the ones in our home lab switch guide.
Mixing vendors is also worth a sentence of caution. Square holes, threaded holes and 16 inch versus 16.5 inch hole spacing are not interchangeable, and a shelf from one brand that almost fits a frame from another is a silent failure you discover when the device will not sit flat. Buy the rail hardware and the shelves from the same family where you can.
Where Home Labbers Find Used and Surplus Racks
The single most repeated tip in home lab forums is to check local listings before you buy anything new. 42U racks from decommissioned small offices and datacenters show up on Craigslist and Facebook Marketplace, and they are often given away or sold for a token amount because the person clearing the space has no use for the steel.
That advice comes with an asterisk. A decommissioned rack is usually a 4-post frame with plenty of load rating, which is exactly what a home lab wants, but you inherit the casters, the holes and the condition. Inspect for stripped square holes, missing cage nuts, bent base plates and sticky leveling feet before you commit, and ask whether the side panels and doors are included.
A 42U frame is also far larger than most home labs need and will visually dominate a room, so the sensible approach is to check the frame dimensions and the height once the top plate is off. Some offices will also let you take the whole rack if you agree to remove it, which is a negotiation that has worked for a lot of builders.
Used does not have to mean 42U. Smaller wall-mount cabinets, 12U comms enclosures and 2-post frames turn up regularly from the same sources, and they are often a better fit for a home lab than a full-height server cabinet. Just measure the usable depth, since that is the specification most likely to disappoint.
Frequently Asked Questions
What is a good small server rack for a home lab?
A 12U 19-inch rack is the sweet spot for most home labs, because it holds a switch, patch panel, firewall, NAS and UPS with room to grow. Choose an open 4-post frame for a garage or basement, an enclosed cabinet for a closet or apartment, and pick depth based on your deepest device rather than the one you own today.
How many rack units do I need for a home lab?
Count 1U for each switch, firewall and patch panel, 2U for a NAS, 2U for a UPS, 1U for a PDU and 1U for a shelf, then add 2U of gaps. That usually lands near 12U. If a frame has cross supports, subtract about 2U and plan against the real usable space.
Do I need an open frame or enclosed rack?
An open frame gives better access, zero added noise and lower cost, and it suits garages and basements. An enclosed cabinet keeps dust out, hides cable clutter and can be locked, which matters in a closet or living space. Either style handles a small home lab thermally, since the gear produces little heat.
Is a wall mount rack strong enough for a UPS?
Yes, if you anchor into studs or add a plywood backer board and stay under the load rating. A 2U UPS commonly weighs 40 to 60 pounds, so a frame rated at 200 lb gives comfortable margin. Mount the UPS at the lowest position to reduce leverage on the anchors.
Should I buy a used server rack?
Used racks are a sensible option, and local listings often have decommissioned office and datacenter frames that cost very little. Inspect for stripped mounting holes, missing cage nuts, bent base plates and dead casters, and check the usable depth before buying, since that is the most common disappointment.
Best Network Racks for Home Labs: Final Verdict
After working through 12 racks, the StarTech 4POSTRACK12U is the pick for the best network racks for home labs in 2026. It gives you 12U of height in a chassis about 25 inches tall, a depth that slides from 22 to 40 inches, a 1200 lb rating that will not be the limiting factor, and the full complement of casters, leveling feet, cage nuts and tools in the box.
The rest of the field has clear, specific winners. Take the StarTech RK12OD if your lab is switches and patch panels and you want a lightweight desktop frame. Take the VEVOR 12U if budget is the constraint and you have a power driver. Take the StarTech RK12WALLOA for a closet wall, the NavePoint 12U glass door cabinet for dust and security, and the DeskPi RackMate T1 if your gear is 10-inch mini hardware.
Whichever you choose, size it against your deepest planned device, keep at least 30 percent load headroom, and put the heavy items low. Those three habits solve most of the problems we saw described by builders, and they are the difference between a rack that still fits in five years and one that gets replaced in two.
